Description
Key Product Features:
- High efficiency Duct S MSP ducted design – fully concealed above the ceiling for a completely unobtrusive finish
- High energy efficiency – A++ cooling / A++ or A+ heating energy class across all models
- Inverter technology – continuously adjusts compressor speed to match real-time demand
- Wide capacity range – modulates output across a broad range to avoid unnecessary energy use
- R32 refrigerant – low global warming potential (GWP) for reduced environmental impact
- Available in single phase and three phase configurations
- Long pipe runs supported – up to 30m, 50m, 55m, or 85m depending on model
- LCD colour wired controller included – full control via MWR-WG01JN NASA controller
- Suitable for offices, retail spaces, restaurants, and light commercial applications

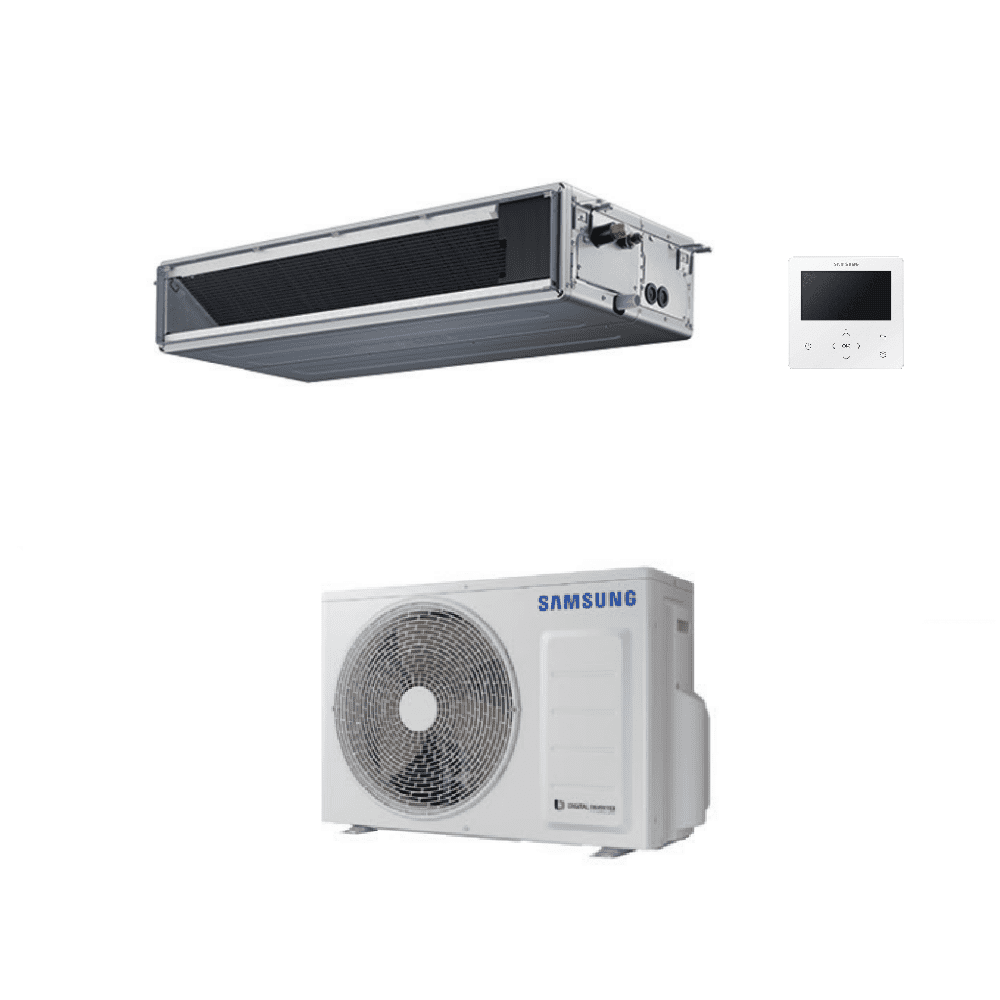

AC035BNMPKG/EU / AC035BXAPKG/EU
| General | ||
| Indoor Unit | AC035BNMPKG/EU | |
| Outdoor Unit | AC035BXAPKG/EU | |
| Power Supply | Single phase, ~230V, 50Hz | |
| Description | 1ph Inverter Heat Pump R32 High Efficiency Duct S MSP Ducted | |
| Controller | MWR-WG01JN (LCD Colour Wired) | |
| Capacity | ||
| Cooling (Rated) | kW | 3.5 |
| Cooling (Min–Max) | kW | 0.8–5.3 |
| Heating (Rated) | kW | 4.0 |
| Heating (Min–Max) | kW | 0.78–5.7 |
| Performance | ||
| SEER | W/W | 7.0 |
| SCOP | W/W | 4.3 |
| Energy | ||
| Energy Class (Cooling) | A++ | |
| Energy Class (Heating) | A+ | |
| Refrigerant & Piping | ||
| Refrigerant | R32 | |
| Max Fuse | A | 15 |
| Pipe Size (Liquid/Gas) | 1/4″, 3/8″ | |
| Max Pipe Length (Height) | m | 30 (20) |
| Pricing | ||
| Outdoor Unit (AC035BXAPKG/EU) | £912.00 | |
| Indoor Unit (AC035BNMPKG/EU) | £394.00 | |
| Controller (MWR-WG01JN) | £99.00 | |
| System Price | £1,405.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
