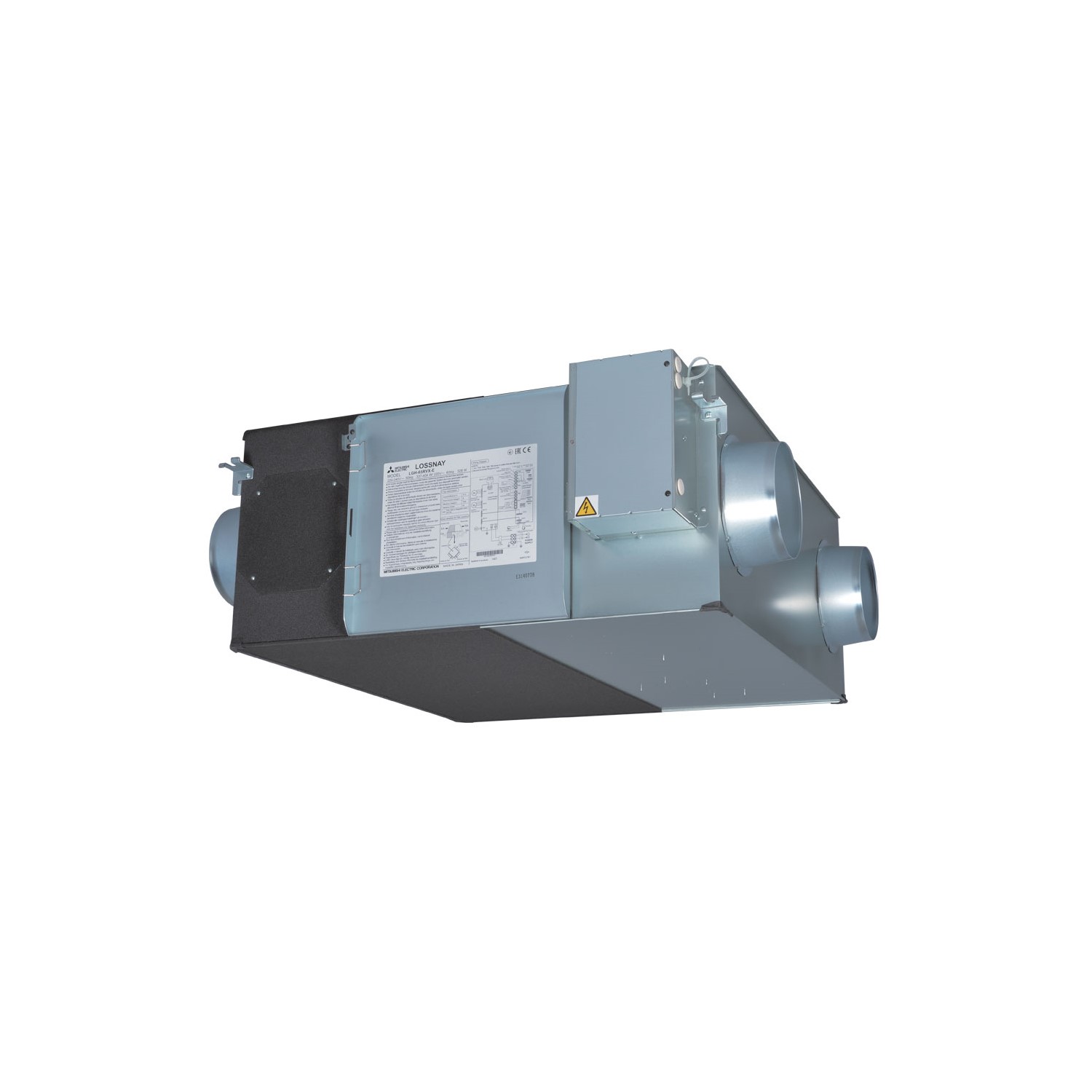

Mitsubishi Electric Lossnay LGH-35RVX3-E Heat Recovery Ventilation System

Name: Mitsubishi Electric Lossnay LGH-35RVX3-E Heat Recovery Ventilation System
SKU: 30355
Availability: InStock

£1,029.00 ex. VAT

Mitsubishi Electric Air Conditioning Commercial Lossnay LGH-35RVX3-E Heat Recovery Ventilation System 350M3/hr 240V~50Hz

Product Key Feature’s:
Effective Fresh Air Ventilation
Free Cooling Function
Good Sound Attenuation
Temperature Exchange Efficiency (up to 81%)
No Outdoor Unit
Includes new desing controller
Full ECA Tax Allowance
Lossnay paper core enables total heat exchange (sensible
and latent) to achieve higher levels of heat recovery,
resulting in both cost and energy savings
Flexible supply and exhaust fan commissioning in 5%
increments, offering low running costs and easier
compliance with Part L
Optional Mitsubishi Electric energy saving CO2 sensors allow
Dual-Barrier coating on the fan prevents dust and grease
accumulation, ensuring long-term efficient operation

Category: Mitsubishi Electric Tags: (MVHR), Duct units, New, Sale, Smart Product ID: 30355

Description
Reviews (0)

Description

Unit Specifications:

Airflow (m3/h) – Lossnay Ventilation – Lo-Hi-ExHi	230-350-350
Noise (dBA) – Lossnay Ventilation – Lo-Hi-ExHi	24-30-32
Noise (dBA) – Bypass Ventilation – Lo-Hi-ExHi	24-30-32.5
Width – mm	874
Depth – mm	888
Height – mm	317
Weight – kg	30
Electrical Supply	220-240v,50Hz
Fuse Rating (BS88) – HRC (A)	6
Duct Size (mm)	150
Power Input (W) – Extra high	192
Starting Current (A)	1.7
Running Current – Low	0.49
Running Current – High	0.73
Running Current – Extra High	0.82
Mains Cable No. Cores	3
Temperature Exchange Efficiency (%) – Low	84
Temperature Exchange Efficiency (%) – High	79
Temperature Exchange Efficiency (%) – Extra High	79

These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
