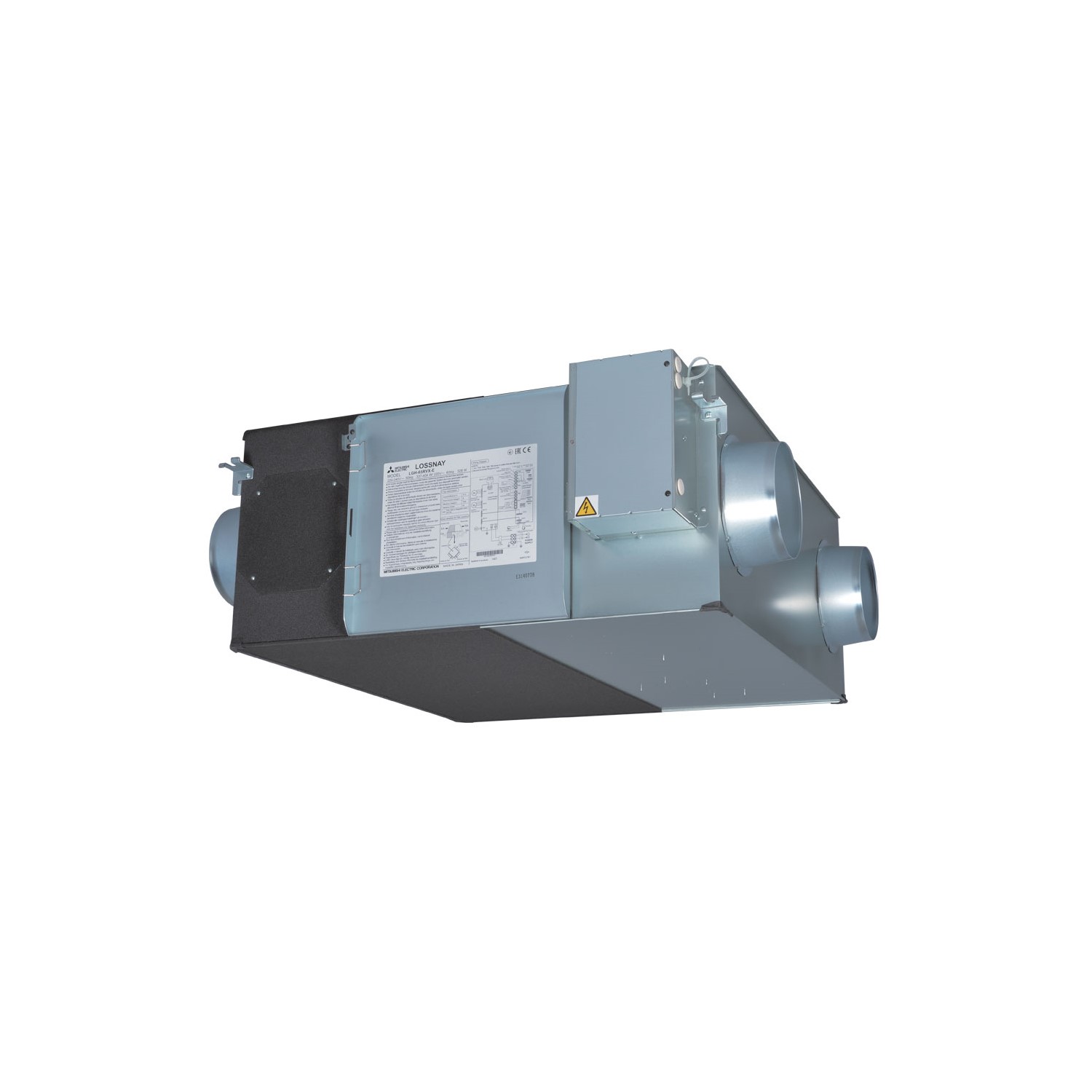

Mitsubishi Electric Air Conditioning LGH-35RX5-E Lossnay Ducted Heat Exchange

£1,029.00

Mitsubishi Electric Air Conditioning LGH-35RX5-E Lossnay Ducted Heat Exchange 350M3/hr 240V~50Hz

This system can be utilised virtually anywhere to extract stale air and then recover the heating or cooling energy to either warm or cool incoming fresh air.  It simultaneously extracts stale air from the internal environment whilst recovering valuable heat energy to maximise efficiency and minimise energy use. The new “Hyper Lossnay Core” at only 25um (approx 1/5 the thickness of LGH-RX5)  uses the thinnest paper in the world to achieve high enthalpy exchange efficiency. The Lossnay core is made from a water resistant paper core and sits at the heart of the system. Constructed in a corrugated form and layered in alternate directions, the core allows a cross airflow to maximise heat recovery without the supply and exhaust air mixing, ensuring only fresh air is introduced into the home. Includes free cooling option is the outside ambient air is cooler than the internal air.

Category: Tags: , , , Product ID: 30355

Description

Product Key Feature’s:
Effective Fresh Air Ventilation
Free Cooling Function
Good Sound Attenuation
Temperature Exchange Efficiency (up to 81%)
No Outdoor Unit
Full ECA Tax Allowance
Includes new controller

Unit Specifications:

Airflow (m3/h) – Lossnay Ventilation – Lo-Hi-ExHi230-350-350
Noise (dBA) – Lossnay Ventilation – Lo-Hi-ExHi24-30-32
Noise (dBA) – Bypass Ventilation – Lo-Hi-ExHi24-30-32.5
Width – mm874
Depth – mm888
Height – mm317
Weight – kg30
Electrical Supply220-240v,50Hz
Fuse Rating (BS88) – HRC (A)6
Duct Size (mm)150
Power Input (W) – Extra high192
Starting Current (A)1.7
Running Current – Low0.49
Running Current – High0.73
Running Current – Extra High0.82
Mains Cable No. Cores3
Temperature Exchange Efficiency (%) – Low84
Temperature Exchange Efficiency (%) – High79
Temperature Exchange Efficiency (%) – Extra High79
