Description
Key Product Features:
- High static ducted design for fully concealed installation across long or complex duct runs
- High static pressure range of 60–260 Pa for demanding multi-zone ductwork
- Extended pipe runs up to 75m (30m pre-charge) — among the longest in the range
- High airflow rate up to 7,300 m³/h for effective large-building circulation
- Three-phase 400V power supply for heavy-duty commercial installations
- Robust operating range from –15°C to +46°C for year-round reliability
- High capacity output of 15.0kW cooling and 18.0kW heating
- R410A refrigerant suited to specific commercial applications
- Compact indoor unit footprint relative to its capacity output

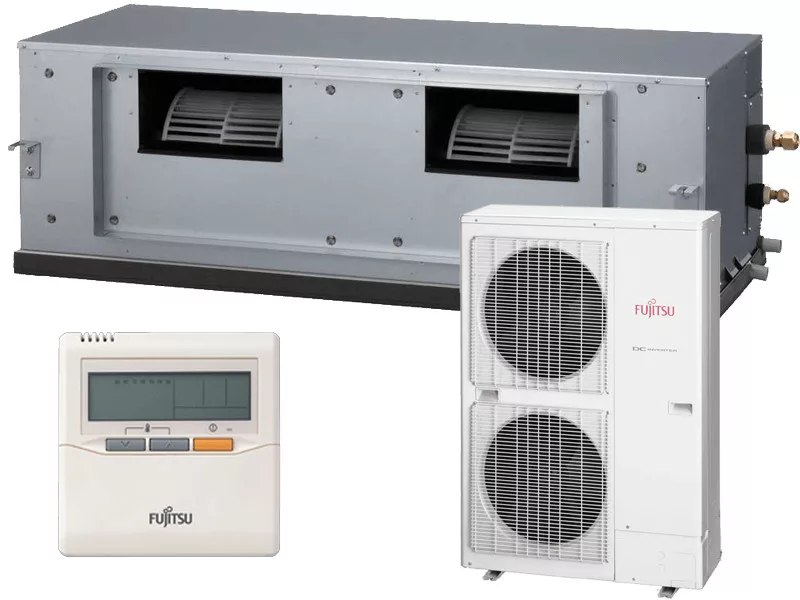

ARYG60LHTA / AOYG60LATT
| General | ||
| Indoor Unit | ARYG60LHTA | |
| Outdoor Unit | AOYG60LATT | |
| Power Supply | 3-phase, ~400 V, 50 Hz | |
| Description | High Static Ducted (R410A) | |
| Capacity | ||
| Cooling (Rated) | kW | 15.0 |
| Cooling (Min–Max) | kW | 6.2–17.5 |
| Heating (Rated) | kW | 18.0 |
| Heating (Min–Max) | kW | 6.2–20.0 |
| Performance | ||
| Input Power (Cooling/Heating) | kW | 4.70/5.15 |
| EER | W/W | 3.19 |
| COP | W/W | 3.50 |
| SEER | W/W | 4.86 |
| SCOP | W/W | 3.50 |
| Static Pressure Range (Standard) | Pa | 60–260 (60) |
| Energy | ||
| Energy Class (Cooling) | — | |
| Energy Class (Heating) | — | |
| Annual Energy Consumption (Cooling) | kWh/a | — |
| Annual Energy Consumption (Heating) | kWh/a | — |
| Sound | ||
| Sound Pressure – Indoor Cooling (H/M/L) | dB(A) | 45/40/36 |
| Sound Pressure – Indoor Heating (H/M/L) | dB(A) | 45/40/36 |
| Sound Pressure – Outdoor (Cooling/Heating) | dB(A) | 56/58 |
| Airflow | ||
| Indoor/Outdoor Airflow – Cooling (High) | m³/h | 3,550/6,900 |
| Indoor/Outdoor Airflow – Heating (High) | m³/h | 3,550/7,300 |
| Dimensions & Weight | ||
| Indoor Unit (H×W×D) | mm | 425 × 1,250 × 490 |
| Outdoor Unit (H×W×D) | mm | 1,290 × 900 × 330 |
| Weight – Indoor | kg | 54 |
| Weight – Outdoor | kg | 104 |
| Refrigerant & Piping | ||
| Max Operating Current (Cooling/Heating) | A | 12.5/12.5 |
| Refrigerant (GWP) | R410A (2,088) | |
| Refrigerant Charge | kg (CO₂eq-t) | 3.45 (7.204) |
| Connection Pipe Diameter (Liquid/Gas) | mm | 9.52/15.88 |
| Drain Hose Diameter (I.D./O.D.) | mm | 23.4/25.4 |
| Max Pipe Length (Pre-Charge) | m | 75 (30) |
| Max Height Difference | m | 30 |
| Operating Range – Cooling | °CDB | –15 to +46 |
| Operating Range – Heating | °CDB | –15 to +24 |
| Moisture Removal | l/h | 2.0 |
| Pricing | ||
| Indoor Unit (ARYG60LHTA) | £2,074.00 | |
| Outdoor Unit (AOYG60LATT) | £3,162.00 | |
| System Price | £5,236.00 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
