Description

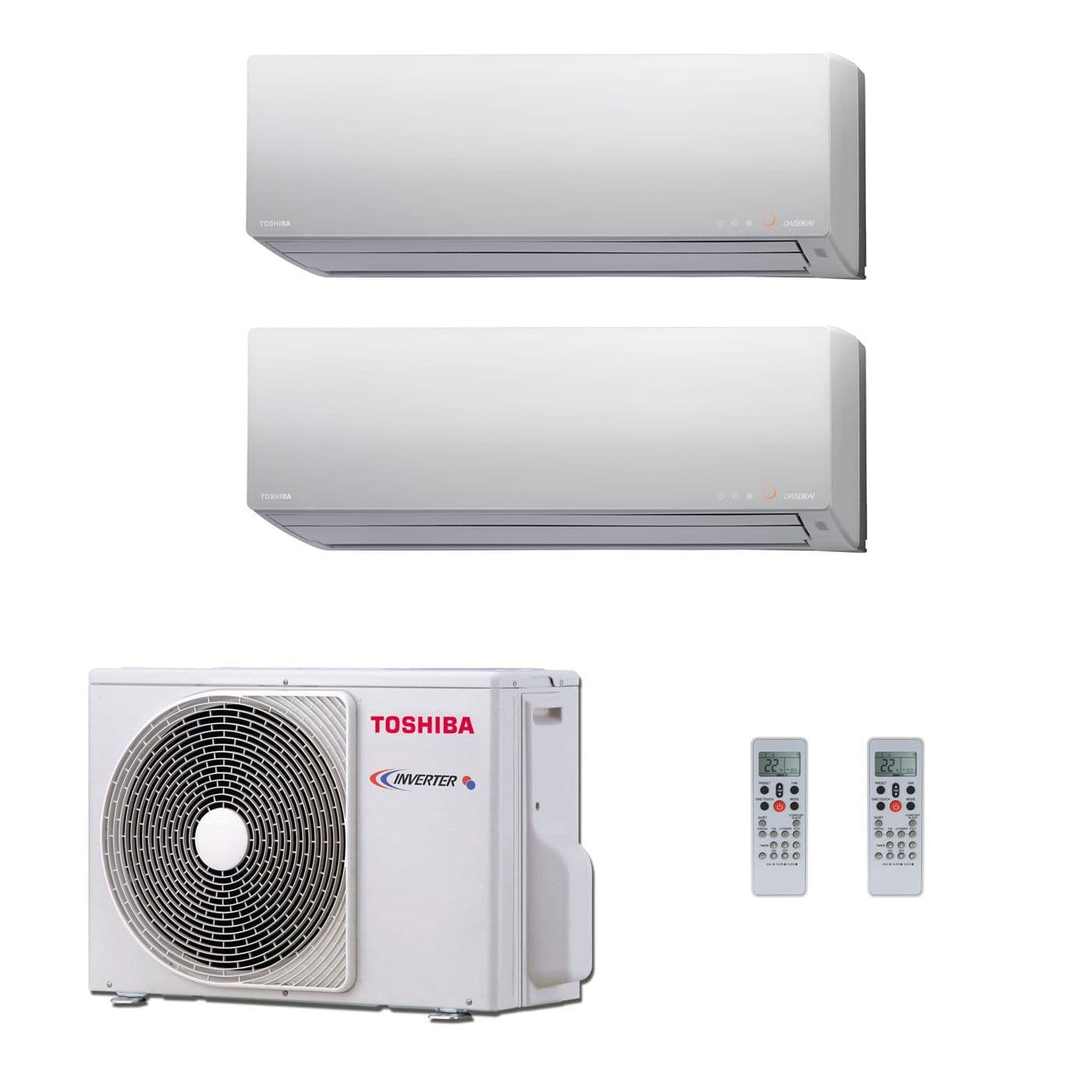

Indoor Wall Mounted Units:
Model – RAS-B10N3KVP-E
Exterior dimensions (mm) 275 x 790 x 225
Net weight kg 10
Sound Pressure Level* (cooling) dB(A) 54-26
Sound Pressure Level* (heating) dB(A) 54-26
COOLING (nominal) max. kW 3.20
HEATING (nominal) max. kW 3.20
OUTDOOR UNIT:
| MODEL OUTDOOR UNIT | RAS- | RAS-2M14S3AV-E |
| CAPACITY CODE | MIN.-MAX. | 20 – 23 |
| INDOOR UNITS CONNECTED | MIN.-MAX. | 2 – 2 |
| Cooling Capacity (Min. – Max.) | (kW) | 4.0 (1.4 – 4.5) | |
| Heating Capacity (Min. – Max.) | (kW) | 4.4 (0.9 – 5.2) | |
| Operating Range Cooling / Heating | (°C) | 43 to 5 / 24 to -10 | |
| Cooling | EER / SEER | 3.7 / 5.8 – 6.0 | |
| Seasonal Energy Consumption | (kWh/a) | 229 / 240 | |
| Power Consumption / Energy Efficiency Class | 0.70 – 1.30 / A+ | ||
| Heating | COP / SCOP | 4.36 / 3.84 – 3.86 | |
| Seasonal Energy Consumption | (kWh/a) | 870 / 875 | |
| Power Consumption / Energy Efficiency Class | 0.77 – 6.33 / A | ||
| Standard Air Flow H Standard Air Flow H | (l/s) (m3/h) | 506 1820 | |
| Sound Pressure Level H/L Sound Power Level H/L | (dBA) (dBA) | 46 / 48 61 / 63 | |
| Refrigerant Base Charge / Chargeless To | (kg / m) | 0.9 / 20 | |
| Refrigerant Additional Charge Main Liquid Side | (g/m) | 20 | |
| Maximum Piping Length To Indoor | (m) | 20 | |
| Minimum / Maximum Piping Length | (m) | 2 / 30 | |
| Height Difference Outdoor To Indoor | (m) | ±10 | |
| Pipe connections Gas side A | (mm / “) | 9.5 – 3/8 | |
| Pipe connections Liquids side A | (mm / “) | 6.4 – 1/4 | |
| Pipe connections Gas side B | (mm / “) | 9.5 – 3/8 | |
| Pipe connections Liquid side B | (mm / “) | 6.4 – 1/4 | |
| Drain Port Connector Hose Inner Diameter | (mm) | 16 | |
| Height / Width / Depth | (mm) | 550 / 780 / 290 | |
| Total Weight | (kg) | 36 | |
| Maximum Run Current | (Amps) | 6.33 | |
| Power Supply | 1 phase 230v 50Hz | ||
| Suggested Fused Supply | (Amps) | 16 | |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
