Toshiba Concealed Duct Air Conditioning System – RAV-SM406BTP-E

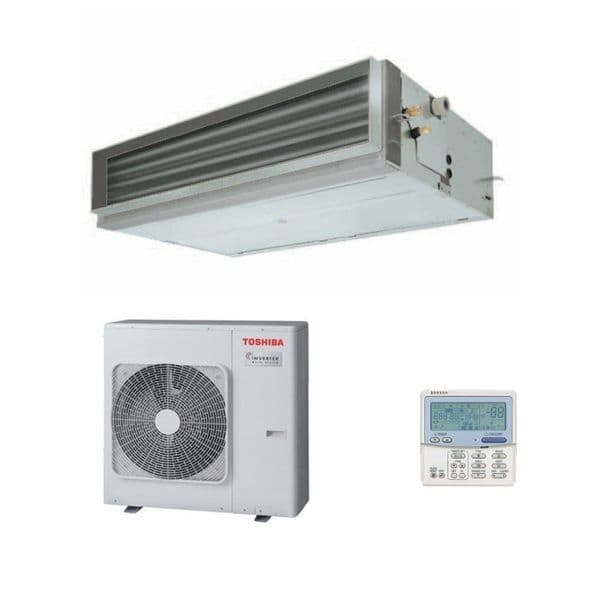

Toshiba Air Conditioning Ducted RAV-SM1406BTP-E

Name: Toshiba Air Conditioning Ducted RAV-SM1406BTP-E
SKU: 31635
Availability: InStock

£2,425.00 ex. VAT

Toshiba Air Conditioning Ducted RAV-SM1406BTP-E12.5Kw/42000Btu Heat Pump Inverter 240V/415V~50Hz

Product Key Feature’s:
Model fits in ceiling void, compact construction
High EER, low annual power consumption
Low height single fan outdoor units
Cooling operation down to -15°C ambient
R22 replacement technology (3 series outdoor units only)
High CoP, up to record 3.57
Wired remote controller
Slim construction 320mm
Pipe runs up to 50 meters
Low noise 33dBA on low
Cold draft prevention on heat pump start up
Fault diagnosis
Auto re-start after power interruption
PRE-CHARGED WITH REFRIGERANT for up to 30 metres pipe length
Light weight noise absorbing outdoor unit

Category: Toshiba Product ID: 31635

Description
Reviews (0)

Description

SPECIFICATIONS:

RAV Ducted RAV-SM1406BTP-E
Power source 1 ph 240V
Type  Inverter rotary
COOLING (nominal) max. kW 12.5 / 41250 BTU
HEATING (nominal) max. kW 14.0 / 46200 BTUUK Cooling (max) kW  13.2 / 43560 BTU
UK Heating (max) kW  16.0 / 52800 BTU
Fuse Rating 32A
E.E.R. n/a
Energy label in heating A+
Energy label in cooling A+
C.o.P 4.43
ECA – Yes

Indoor Unit:

Exterior dimensions (mm) 275 x 1400 x 750
Discharge Spigots: 200mm
Net weight kg 40
Air flow rate* (cooling) (m3//min) 38 / 41 / 44
Air flow rate* (heating) (m3//min) 53 / 54

Outdoor Unit:

Exterior dimensions (mm) 890 x 900 x 320
Net weight kg 68
Power Source Rating MCB A 32A
Refrigerant max piping length m 50
Pipe sizes – 3/8″ x 5/8″

These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers
