Toshiba Concealed Duct Air Conditioning System – RAV-SM406BTP-E

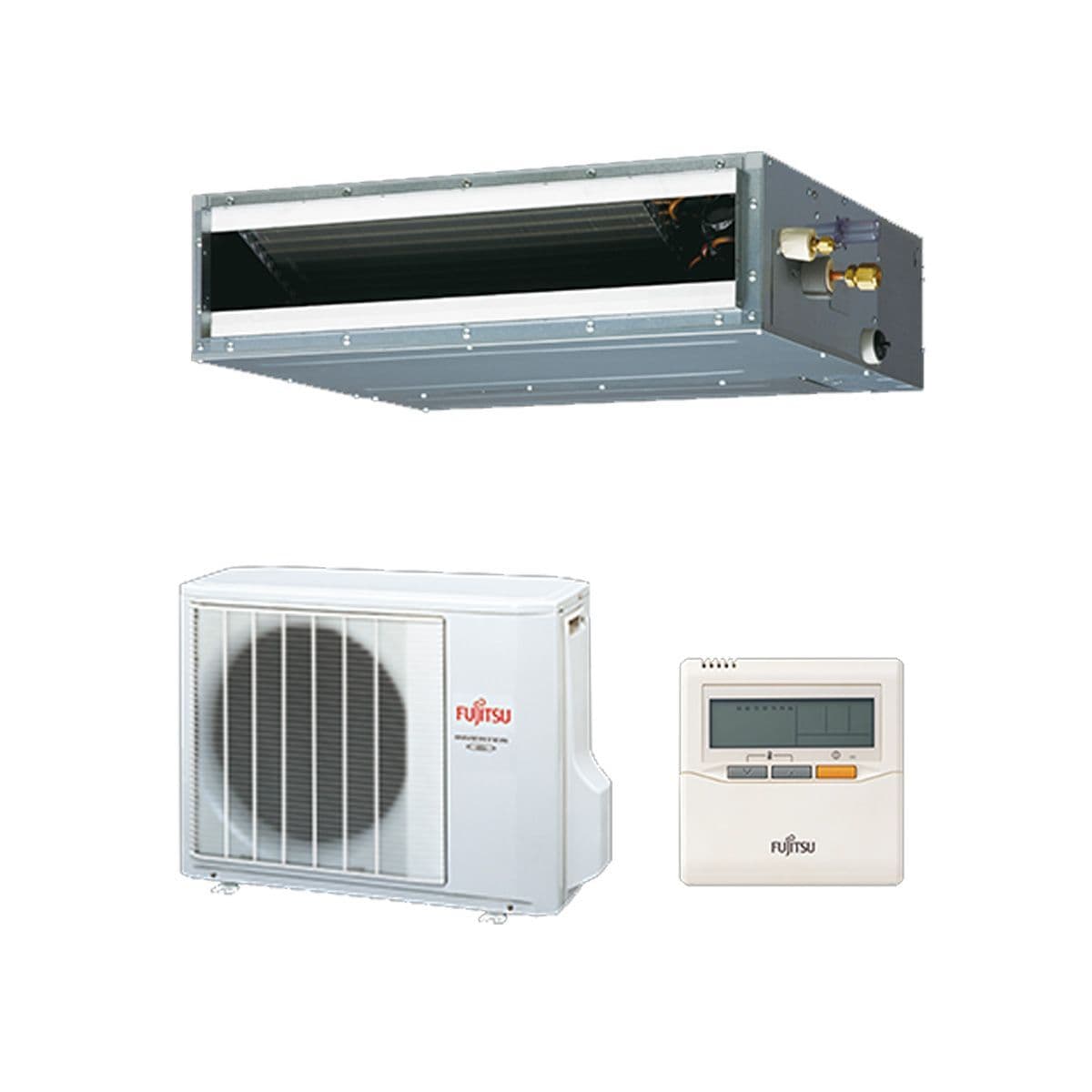

Fujitsu ARYG-LLTB slimline concealed duct air conditioner with inverter technology

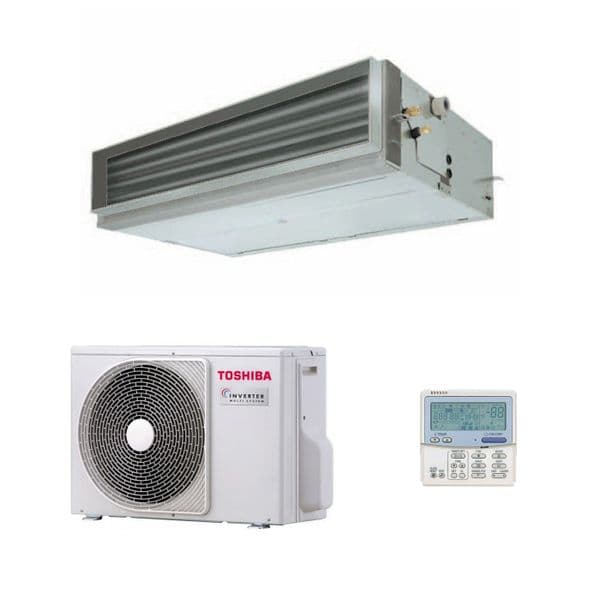

Toshiba Air Conditioning Ducted RAV-GM561BTP-E

Name: Toshiba Air Conditioning Ducted RAV-GM561BTP-E
SKU: 31628
Availability: InStock

£2,325.00 ex. VAT

Toshiba Air Conditioning Ducted RAV-GM561BTP-E 5Kw/17000Btu Heat Pump Inverter A 240V~50Hz

Product Key Feature’s:
Model fits in ceiling void, compact construction
High EER, low annual power consumption
Low height single fan outdoor units
Cooling operation down to -15°C ambient
High CoP, up to record 3.27
Wired remote controller
Pipe runs up to 30 meters
Low noise 33dBA on low
Cold draft prevention on heat pump start up
Fault diagnosis
Auto re-start after power interruption
PRE-CHARGED WITH REFRIGERANT for up to 20 metres pipe length
Light weight noise absorbing outdoor unit
R22 & R407C replacement technology
External static pressure can be raised up to 120Pa
Lift pump up to 850mm lift or gravity drain
Low noise: low fan speed down to 25dB(A)
Ideal for restricted ceiling voids only 275mm high
Base or rear return air with filter

Category: Toshiba Product ID: 31628

Description
Reviews (0)

Description

SPECIFICATIONS:

RAV Ducted RAV-SM566BTP-E
Power source 1 ph 240V
Type  Inverter rotary
COOLING (nominal) max. kW 5.0 / 17000 BTU
HEATING (nominal) max. kW 5.6 / 18480 BTU
UK Cooling (max) kW  5.6 / 16500 BTU
UK Heating (max) kW  6.3 / 20780 BTU
Fuse Rating 16A
E.E.R. n/a
Energy label in heating A
Energy label in cooling B
C.o.P 3.27
ECA – Yes
Exterior dimensions (mm) 320 x 700 x 800
Discharge Spigots 2 x 200mm
Net weight kg 30
Air flow rate* (cooling) (m3//min)  33 / 37 / 40
Air flow rate* (heating) (m3//min)  46 / 48

Outdoor Unit:

Exterior dimensions (mm) 550 x 780 x 290
Net weight kg 38
Power Source Rating MCB A 16A
Refrigerant max piping length m 30
Pipe sizes – 1/4″ x 1/2″

These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
