Description

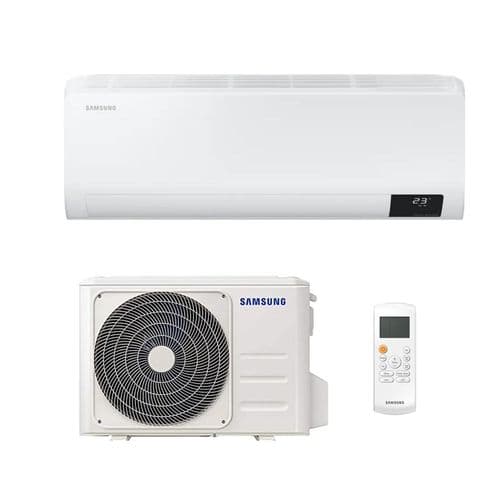

Samsung air conditioning Cebu standard inverter wall mounted unit with Wi-Fi Control, Samsung SmartThings, Bixby voice controls, cooling and heat pump technology. The Cebu Standard inverter range are high in features, high in performance wall mounted air conditioning systems with an attractive matt-white finish. The unit has a temperature display on the front of the unit. They offer high performance without the unwanted features that more commercial systems offer, the new lower profile flatter appearance is far more easy to keep clean and the cross flow fan is moulded from an antibacterial formula to prevent unpleasant odours.
Technical Data’s:
Indoor/Outdoor Unit Ref: AR18TXFYAWKNEU / AR18TXFYAWKXEU
Capacity:
Capacity (Cooling, Btu/hr) 18000 Btu/hr
Capacity (Heating, Btu/hr) 18000 Btu/hr
Capacity (Cooling, Min – Max, Btu/hr) 5440 ~ 22780 Btu/hr
Capacity (Heating, Min – Max, Btu/hr) 4420 ~ 27200 Btu/hr
Capacity (Cooling, kW) 5 kW
Capacity (Heating, kW) 5 kW
Capacity (Cooling, Min – Max, kW) 1.6 ~ 6.7kW
Capacity (Heating, Min – Max, kW) 1.3 ~ 8 kW
AR18TXHZAWKXEU
Capacity (Cooling, kW) :5.0
Capacity (Heating, kW) : 6.0
Cooling (Nom.) kW : 5.00
Cooling (range) kW: 1.6 – 6.7
Cooling (UK) kW: 4.55
Cooling (Sens. UK) kW: 3.88
SEER (EER): 6.80
Energy Grade Cooling: A++
Heating (Nom.) kW: 6.00
SCOP (COP) : 3.80
Energy Grade Heating : A
Fuse Amp : 13
Max.Run Current (A) : 11.5
Liq. pipe (“) 1/4
Gas pipe (“) 1/2
Max pipe Length (inc. lift) 30 (15)
Precharge weight kg (length m) 1.3 (5)
Add. Charge (gm/m) 15
Con. Pump Lift (mm) disp. (l/hr) N/A
Indoor Unit WxHxD (mm): 880x638x3101055x299x215
IDU Wgt (kg): 11.5
IDU Sound Pressure dB(A): 25
Outdoor Unit WxHxD (mm): 880x638x310
ODU Wgt (kg): 39.7
ODU Sound Pressure dB(A): 51
Air Purification:
PM 1.0 Filter: No
Tri Care Filter: No
Easy Filter Plus (Anti-Bacteria): Yes
Auto Clean (Self Cleaning): Yes
Convenience:
SmartThings: No
Motion Detect Sensor: No
Filter Cleaning Indicatior: Yes
Indoor Temp. Display: Yes
Display On/Off: Yes
Beep On/Off: Yes
24-Hour Timer: Yes
Auto Changeover: Yes
Auto Restart: Yes
Operating Mode:
Auto Mode: Yes
Fast Cool: Yes
Good Sleep: Yes
Eco Mode: Yes
Dehumidification: Yes
Fan Mode: Yes
Quiet: Yes
