Description

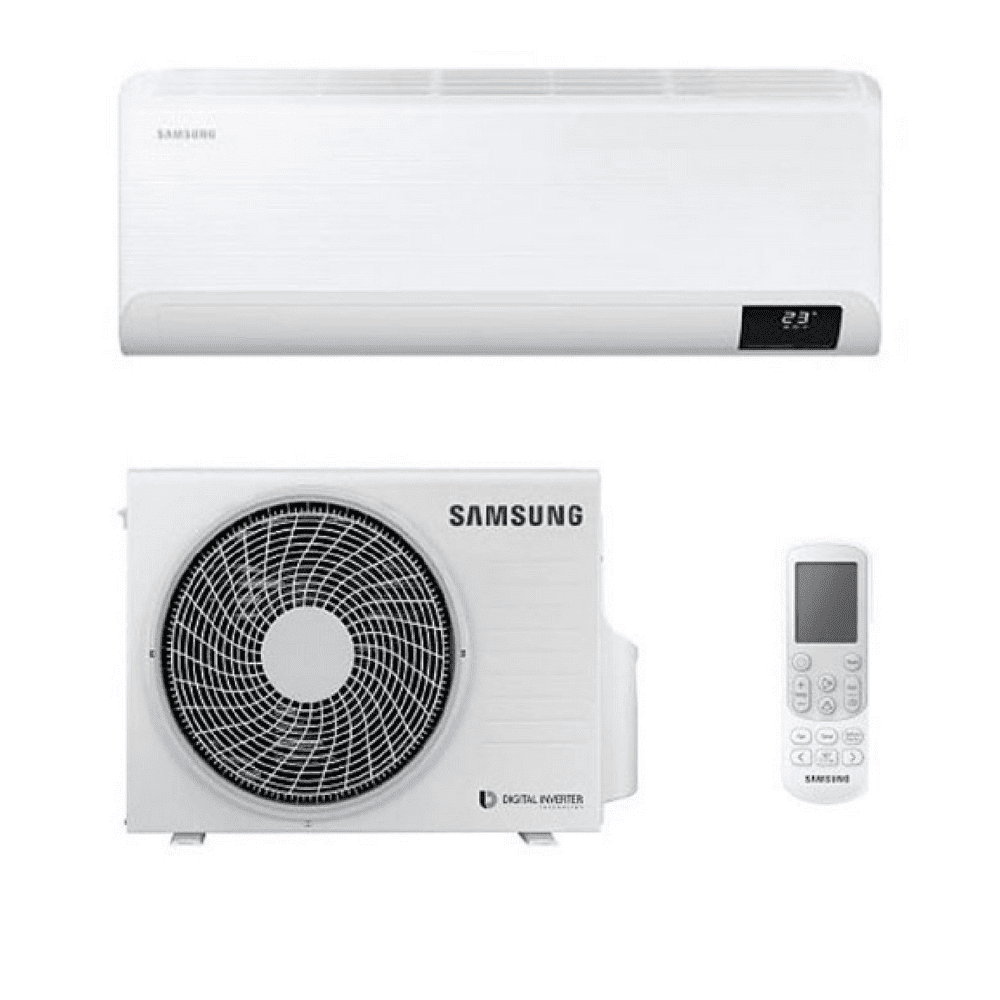

Samsung air conditioning Cebu standard inverter wall mounted unit with Wi-Fi Control, Samsung SmartThings, Bixby voice controls, cooling and heat pump technology. The Cebu Standard inverter range are high in features, high in performance wall mounted air conditioning systems with an attractive matt-white finish. The unit has a temperature display on the front of the unit. They offer high performance without the unwanted features that more commercial systems offer, the new lower profile flatter appearance is far more easy to keep clean and the cross flow fan is moulded from an antibacterial formula to prevent unpleasant odours.
Specification:
Indoor/Outdoor Unit Ref: AR09TXFYAWKNEU / AR09TXFYAWKXEU
Capacity:
Capacity (Cooling, Btu/hr)8530 Btu/hr
Capacity (Heating, Btu/hr)10919 Btu/hr
Capacity (Cooling, Min – Max, Btu/hr)3,071 ~ 11,431 Btu/hr
Capacity (Heating, Min – Max, Btu/hr)3,071 ~ 15,355 Btu/hr
Capacity (Cooling, kW)2.50 kW
Capacity (Heating, kW)3.20 kW
Capacity (Cooling, Min – Max, kW)0.9 ~ 3.35 kW
Capacity (Heating, Min – Max, kW)0.9 ~ 4.5 kW
Energy Efficiency:
SEER(W/W, Energy Label)6.70
EER (Cooling, W/W)3.57 W/W
COP (Heating, W/W)3.81 W/W
EER (Cooling, Btu/hW)12.19 Btu/hW
COP (Heating, Btu/hW)13.00 Btu/hW
Energy Efficiency Class for cooling (Grade)A++
Energy Efficiency Class for heating in ‘Average’ heating season (Grade)A+
Energy Efficiency Class for heating in ‘Average’ heating season (W/W)4.00
Noise Level:
Sound Power Level(Indoor, Cooling, dBA)54 dBA
Sound Power Level(Outdoor, Cooling, dBA)63 dBA
Noise Level (Indoor, High/Low, dBA)37 / 19 dBA
Noise Level (Outdoor, High/Low, dBA)46 dBA
Electrical Data:
Power Source(Φ/V/Hz)1 / 220-240 / 50
Power Consumption(Cooling, W)700 W
Power Consumption(Heating, W)840 W
Operating Current(Cooling, A)3.6 A
Operating Current(Heating, A)4.0 A
Physical Specification:
Gross Dimension (Indoor, WxHxD, mm*mm*mm)880*290*375 mm*mm*mm
Gross Dimension (Outdoor, WxHxD, mm*mm*mm)778*550*331 mm*mm*mm
Net Dimension (Indoor, WxHxD, mm*mm*mm)820*299*215 mm*mm*mm
Net Dimension (Outdoor, WxHxD, mm*mm*mm)660*475*242 mm*mm*mm
Gross Weight (Indoor, kg)11.1 kg
Gross Weight (Outdoor, kg)24.3 kg
Net Weight (Indoor, kg)9.1 kg
Net Weight (Outdoor, kg)22.6 kg
Loading Quantity (20/40/40Hft without Pipe)120 / 248 / 280
Technical Information:
Piping Length (Max, m)15 m
Piping Height (Max, m)8 m
SVC Valve (Liquid (ODxL))6.35
SVC Valve (Gas (ODxL))9.52
Moisture Removal (l/hr)1.0 l/hr
Air Circulation (Cooling, m³/min)10.5 m³/min
Refrigerant (Type)R32(Contains fluorinated greenhouse gases, GWP=675)
Refrigerant (Charging, kg)0.70 kg
Refrigerant (Charging, tCO2e)0.47 tCO2e
Low Ambient (Cooling, ℃)-10~46 ℃
Low Ambient (Heating, ℃)-15~24 ℃
Outdoor Unit (Compressor Type): BLDC
Outdoor Unit (Anti-Corrosion Fin): Yes
Air Flow:
Air Direction Control (Up/Down): Auto
Air Direction Control (Left/Right): Manual
Air Flow Control Step (Cool/Fan): 5/4
Air Purification:
PM 1.0 Filter: No
Tri Care Filter: No
Easy Filter Plus (Anti-Bacteria): Yes
Auto Clean (Self Cleaning): Yes
Operating Mode:
Auto Mode: Yes
Fast Cool: Yes
Good Sleep: Yes
Eco Mode: Yes
Dehumidification: Yes
Fan Mode: Yes
Quiet: Yes
Smart:
Wi-Fi Embedded: Yes
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
