Description
Technical Specification:
| PACi Elite | |
| Single Phase | |
| Power rating | 12.5kW |
| Kit | KIT-125PN1E5A4 |
| Timer remote controller | CZ-RTC4 |
| Cooling capacity Nominal (Min – Max) kW | 12.5 (3.3 – 14.0) |
| Nominal (Min – Max) | 3.21 (3.30 – 2.92) A |
| SEER 2) | — |
| Pdesign | — |
| Input power cooling Nominal (Min – Max) kW | 3.89 (1.00 – 4.80) |
| Annual energy consumption (ErP) 3) kWh/a | — |
| Heating capacity Nominal (Min – Max) kW | 14.0 (4.1 – 16.0) |
| Heating capacity at -7/-15°C 4) kW | 13.48 |
| COP 1) Nominal (Min – Max) W/W | 3.61 (3.90 – 2.96) A |
| SCOP 5) W/W | — |
| Pdesign at -10°C kW | — |
| Input power heating Nominal (Min – Max) kW | 3.88 (1.05 – 5.40) |
| Annual energy consumption (ErP) 3) kWh/a | — |

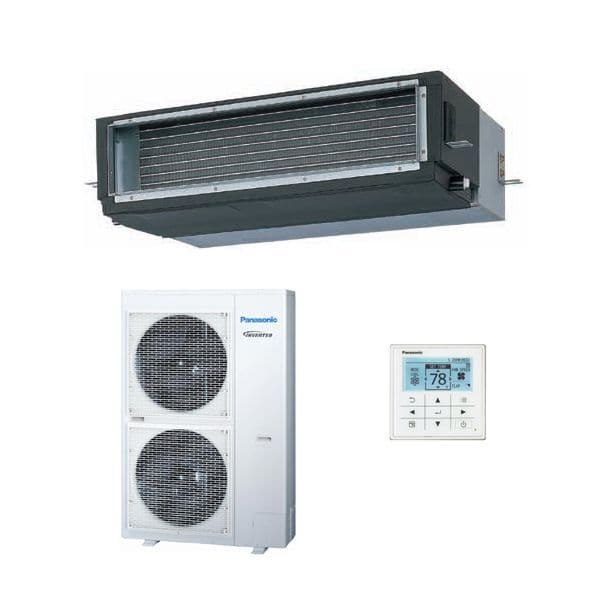

| Indoor Unit | S-125PN1E5A |
| External static pressure 6) Nominal (Min – Max) Pa | 50 (10 – 80) |
| Air volume Hi / Med / Lo m³/min | 38 / 35 / 28 |
| Moisture removal volume L/h | 7.9 |
| Sound pressure 74 Hi / Med / Lo dB(A) | 45 / 43 / 38 |
| Sound power Hi / Med / Lo dB | 66 / 64 / 59 |
| Dimensions 8) H x W x D mm | 250 x 1200 x 650 |
| Net weight kg | 41 |
| Outdoor Unit | U-125PE1E5A |
| Power source V | 220 / 230 / 240 |
| Recommended fuse A | 30 |
| Connection mm² | 6 |
| Current Cooling A | 17.4 / 16.9 / 16.4 |
| Heating A | 17.3 / 16.8 / 16.3 |
| Air volume Cooling / Heating m³/min | 130 / 110 |
| Sound pressure Cooling / Heating (Hi) dB(A) | 53 / 53 |
| Sound power Cooling / Heating (Hi) dB | 70 / 70 |
| Dimensions H x W x D mm | 1416 x 940 x 340 |
| Net weight kg | 98 |
| connections Liquid pipe Inch (mm) | 3/8 (9.52) |
| Gas pipe Inch (mm) | 5/8 (15.88) |
| Piping length range / Elevation difference (in/out) 9) m | 5 – 75 / 30 |
| Pipe length for additional gas / Additional gas amount m / g/m | 30 / 50 |
| Refrigerant (R410A) kg / TCO2 Eq. | 3.40 / 7.0992 |
| Operating range Cooling Min ~ Max °C | -15 ~ +46 |
| Heating Min ~ Max °C | -20 ~ +24 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
