Description
Technical Specification:

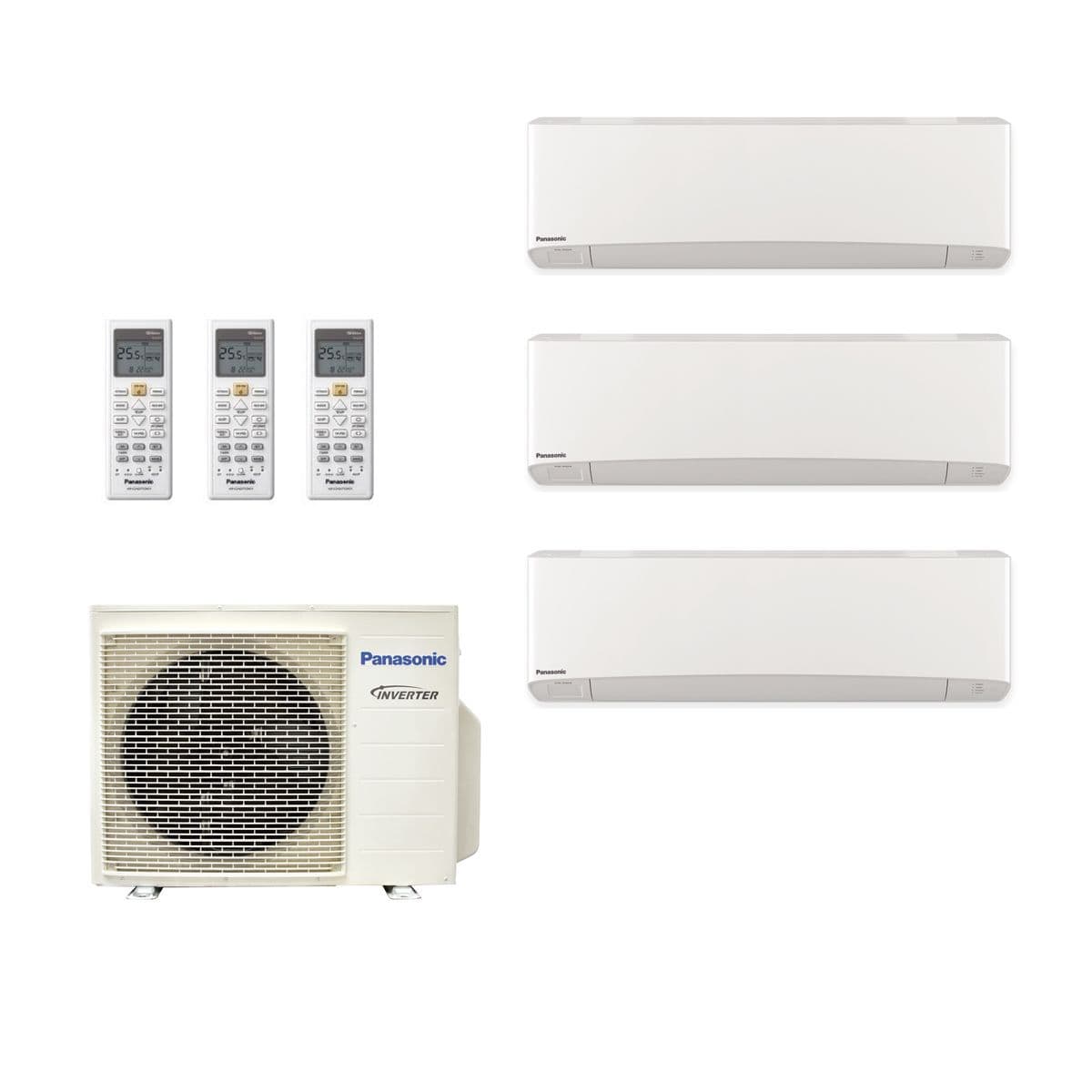

Outdoor Unit Free Multi System Z R32 GAS
| System Capacity (Min – Max Indoor Cooling Capacity Nominal) | 4,5 to 9,5kW | ||
| Unit | CU-3Z52TBE | ||
| Cooling capacity | Nominal (Min – Max) | kW | 5,20 (1,90-7,20) |
| EER 1) | Nominal (Min – Max) | W/W | 4,95 A |
| SEER | W/W | 8,50 j | |
| Pdesign (cooling) | kW | 5,2 | |
| Input power cooling | Nominal (Min – Max) | kW | 1,09 (0,36 – 2,18) |
| Annual electricity consumption (cooling) 2) | kWh/a | 214 | |
| Heating capacity | Nominal (Min – Max) | kW | 6,80 (1,60-8,30) |
| Heating capacity at -7°C | kW | 3,95 | |
| COP 1) | Nominal (Min – Max) | W/W | 4,72 A |
| SCOP | W/W | 4,20 h | |
| Pdesign at -10°C | kW | 5,0 | |
| Input power heating | Nominal (Min – Max) | kW | 1,47 (3,20 – 2,17) |
| Annual electricity consumption (heating) 2) | kWh/a | 1.667 | |
| Current | Cooling / Heating | A | 5,00 / 6,70 |
| Power source | V | 230 | |
| Recommended fuse | A | 16 | |
| Recommended power cable section | mm² | 2,5 | |
| Sound pressure 3) | Cooling / Heating (Hi) | dB(A) | 47 / 48 |
| Dimensions 4) | H x W x D | mm | 795 x 875 x 320 |
| Net weight | kg | 71 | |
| Piping connections | Liquid pipe | Inch (mm) | 1/4 (6,35) |
| Gas pipe | Inch (mm) | 3/8 (9,52) | |
| Elevation difference (in/out) | Max | m | 15 |
| Piping length total | Min ~ Max | m | 3 ~ 50 |
| Piping length to one unit | Min ~ Max | m | 3 ~ 25 |
| Pipe length for additional gas / Additional gas amount | m / g/m | 30 / 20 | |
| Operating range | Cooling Min ~ Max | °C | -10 ~ +46 |
| Heating Min ~ Max | °C | -15 ~ +24 | |
Indoor Unit Specification:
| Wall Mounted TZ Compact Style | 3.2kW | ||
| Indoor Unit | CS-TZ35TKEW* | ||
| Cooling capacity | kW / kCal/h | 3,20 / 2.750 | |
| Heating capacity | kW / kCal/h | 4,50 / 3.870 | |
| Connection | mm² | 4 x 1,5 | |
| Sound pressure¹ | Cooling (Hi / Lo / S-Lo) | dB(A) | 42 / 30 / 20 |
| Heating (Hi / Lo / S-Lo) | dB(A) | 42 / 33 / 25 | |
| Dimensions / Net weight | H x W x D | mm / kg | 290 x 799 x 197 / 8 |
| Piping connections | Liquid pipe / Gas pipe | Inch (mm) | 1/4 (6,35) / 3/8 (9,52) |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
