Description
A+++ Rated energy product

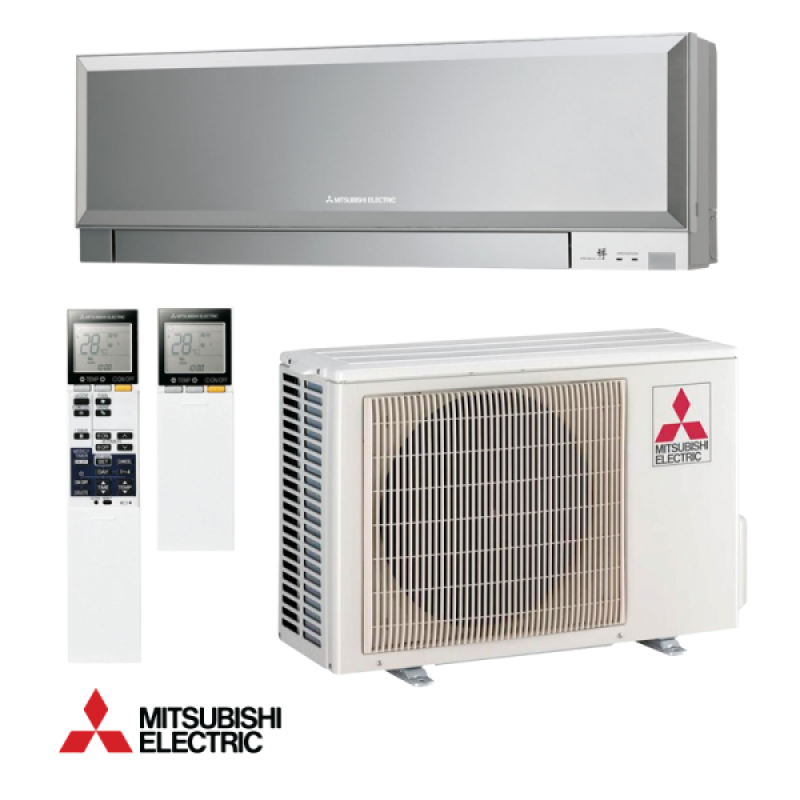

The new Mitsubishi Electric air conditioning Zen MSZ-EF R32 series are a stylish wall mounted system. Featuring the new Nano-Platinum filter system, low noise levels (as low as 21dBA* 1).and have a distinctively styled front panel that not only looks appealing but also helps to make cleaning of the unit easier. The Mitsubishi Electric Zen models come in three colours white, silver and black (colour option) other features such as high COP inverter technology making it economical to run air conditioning and heating with improved COP.
Ideal for use in any bed room or office, units come equipped with a automatic swing vane, allowing airflow to be extended to every corner of a room.
Designed to heat or cool small to medium sized applications, the Zen MSZ-EF R32 Series range provides a artistic and modern air conditioning solution. Unlike conventional models with a grilled air intake, wall mounted models feature a smoothly contoured, flat panel finish with a top air intake that not only improves aesthetics, but also helps to reduce noise as the heat exchanger area is fully covered. Now includes wi-fi adaptor factory fitted as standard.
Technical Data:
| MSZ-EF B/S/W – INDOOR UNITS | MSZ-EF25VGK B/S/W |
| CAPACITY (kW) Heating (nominal) | 3.2 (1.0-4.2) |
| Cooling (nominal) | 2.5 (0.9-3.4) |
| Heating (UK) | 2.65 (0.91-3.49) |
| Cooling (UK) | 2.48 (0.89-3.37) |
| SHF (nominal) | 0.97 |
| COP / EER (nominal) | 4.57 / 4.63 |
| SCOP / SEER (BS EN14825) | 4.7 / 9.1 |
| ErP ENERGY EFFICIENCY CLASS Heating/Cooling | A++ / A+++ |
| AIRFLOW (l/s) Heating/Cooling – SLo-Lo-Mi-Hi-SHi | 67-77-103-148-198 / 67-77-105-138-175 |
| PIPE SIZE mm (in) Gas | 9.52 (3/8”) |
| Liquid | 6.35 (1/4”) |
| SOUND PRESSURE LEVEL (dBA) Heating/Cooling – SLo-Lo-Mi-Hi-SHi | 21-24-29-37-45 / 19-23-29-36-42 |
| SOUND POWER LEVEL (dBA) | 60 |
| DImENSIONS (mm) Width x Depth x Height | 885 x 195 x 299 |
| WEIGHT (kg) | 11.5 |
| ELECTRICAL SUPPLY | Fed by Outdoor Unit |
| FUSE RATING (BS88) – HRC (A) | 6 |
| INTERCONNECTING CABLE No. CORES | 4 |
Notes: Black (B), Silver (S), White (W)
Built-in Wi-Fi interface enabling control and monitoring via the MELCloud app – now compatible with Alexa
| MUZ-EF – OUTDOOR UNITS | MUZ-EF25VG |
| SOUND PRESSURE LEVEL (dBA) Heating/Cooling | 48 / 47 |
| SOUND POWER LEVEL (dBA) Cooling | 58 |
| WEIGHT (kg) | 31 |
| DImENSIONS (mm) Width x Depth x Height | 800 x 285 x 550 |
| ELECTRICAL SUPPLY | 220-240v, 50Hz |
| PHASE | Single |
| SYSTEm POWER INPUT (kW) Heating/Cooling (nominal)Heating/Cooling (UK) | 0.70 / 0.540.64 / 0.44 |
| STARTING CURRENT (A) | 3.6 |
| SYSTEm RUNNING CURRENT (A) Heating/Cooling [MAX] | 3.6 / 3.0 [6.8] |
| FUSE RATING (BS88) – HRC (A) | 10 |
| mAINS CABLE No. CORES | 3 |
| mAX PIPE LENGTH (m) | 20 |
| mAX HEIGHT DIFFERENCE (m) | 12 |
| CHARGE REFRIGERANT (kg) / CO2 EQUIVALENT (t) – R32 (GWP 675) – 7m | 0.62 / 0.42 |
| mAX ADDITIONAL REFRIGERANT (kg) / CO2 EQUIVALENT (t) – R32 (GWP 675) | 0.26 / 0.18 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
