Description
Key Product Features:
- Wi-Fi- Built in with use of Smart M-Air App
- Weekly Timer/Sleep Timer
- Allergen Clear Filter + Photo-catalytic Washable Filter
- Motion Sensor/ECO Operation/Auto Off
- Allergen Clear Filter – Effective against Covid!
- Allergen Clear Operation – Eliminates allergens & bacteria captured in anti-allergen filter in less than 90 minutes.
- Super High CoP, up to record 5.74
- New advanced technology control
- Infra-red controller with wall mounting bracket
- Reduced height slim construction
- Silver insert trim styling.

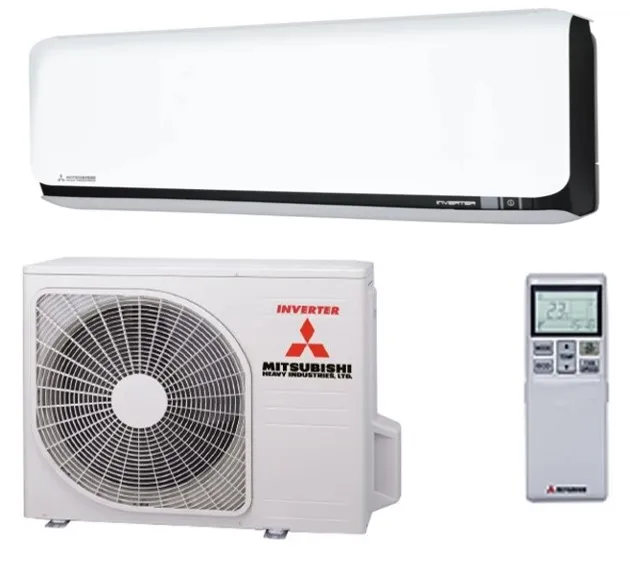

| INDOOR UNIT c/w Controller | SRK60ZSX-WF, WFT, WFB | |
| OUTDOOR UNIT | SRC60ZSX-W1 | |
| UK Cooling | kW | 5.81 |
| UK Sensible Cooling | kW | 4.57 |
| Cooling Range (Nominal) | kW | 1.0 to 6.9 |
| S.E.E.R , EER, Energy Label | 7.8, 3.57, A++ | |
| Heating Range (Nominal) | kW | 0.8 – 8.8 |
| S.C.O.P , COP, Energy Label | 4.60, 4.12,A++ | |
| Annual electricity consumption c/h | kWh/a | 83/793 |
| INDOOR UNIT | ||
| Exterior Dimensions (H x W x D) | mm | 305 x 920 x 220 |
| Net Weight | kg | 13 |
| Air Flow (H/M/L) Cooling | m3/m | 16.3 / 13.4 / 8.9 |
| Air Flow (H/M/L) Heating | m3/m | 17.8 /1 3.7 / 10.9 |
| Sound Pressure Level (H/M/L) Cooling | db(A) | 48 / 41 / 33 |
| Sound Pressure Level (H/M/L) Heating | db(A) | 47 / 42 / 34 |
| OUTDOOR UNIT | ||
| Exterior Dimensions (H x W x D) | mm | 640 x800(+71)x290 |
| Net Weight | kg | 45 |
| Sound Pressure Level Cooling/Heating | db(A) | 52 / 53 |
| ELECTRICAL DATA | ||
| Power Source Rating MCB | A | 20 |
| Mains Power To | Outdoor | 230V/1ph/50Hz |
| Interconnecting Wires (Dia) | (mm2) | 3+E (1.5) |
| Start Current / Max Running Current | A | 5 / 15 |
| INSTALLATION/REFRIGERANT | ||
| Ref. Piping Size o.d.ins (mm) | Liquid | 1/4 (6.35) |
| Suction | 1/2 (12.7) | |
| Ref. Max Piping Length | m | 30 |
| Vertical Height Difference (Max)*Outdoor Unit Above/Below Indoor Unit | m | 20 / 20 |
| Refrigerant Amount Pre-charged | kg/ TCO2Eq | 1.30 / 0.88 |
| * For Pipe Length Up To | m | 15 |
| Additional Refrigerant | g/m | 20 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
