Description
Technical Specification:

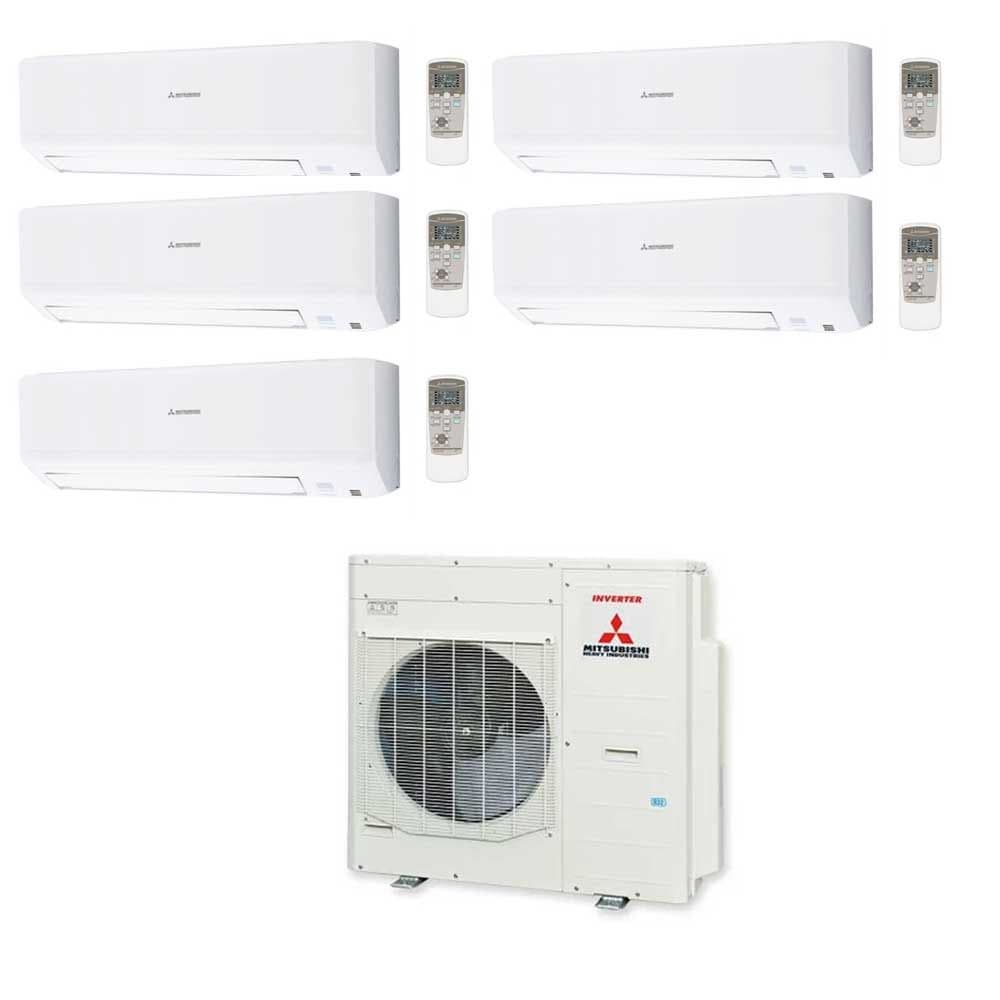

| INDOOR UNIT c/w Controller | SKM20ZSP-W | |
| Nominal Cooling | Kw | 2.0 |
| Nominal Heating | Kw | 3.0 |
| Exterior Dimensions (H x W x D) | mm | 267 x 783 x 210 |
| Net Weight | kg | 7.5 |
| Air Flow (H/M/L) Cooling | m3/m | 8.5 / 7.0 / 5.0 |
| Air Flow (H/M/L) Heating | m3/m | 8.0 / 7.0 / 5.5 |
| Sound Pressure Level (H/M/L) Cooling | db(A) | 42 / 35 / 22 |
| Sound Pressure Level (H/M/L) Heating | db(A) | 8.0 / 7.0 / 5.5 |
| Ref. Piping Size o.d.ins (mm) | Liquid | 1/4 (6.35) |
| Suction | 3/8 (9.52 |
| Outdoor | SCM100ZS-W | |||
| Power source (Outdoor) | 1 Phase 240V 50Hz | |||
| *Operation data | Nominal Capacity (Range) | Cooling T1 | kW | 10.0 (1.7~11.5) |
| Heating H1 | 10.5 (0.9~11.5) | |||
| Power consumption | Cooling T1 | 2.70 | ||
| Heating H1 | 2.38 | |||
| Running current | Cooling T1 | A | 11.4 | |
| Heating H1 | 10.0 | |||
| Inrush current, maximum current | 5, 21 | |||
| EER | Cooling T1 | 3.70 | ||
| COP | Heating H1 | 4.41 | ||
| Sound power level (JIS C9612) | Cooling T1 | dB(A) | 67 | |
| Heating H1 | 72 | |||
| Sound pressure level (JIS C9612) | Cooling T1 | 54 | ||
| Heating H1 | 59 | |||
| Silent mode | Cooling T1 | 49 | ||
| Heating H1 | 50 | |||
| External dimensions (HxWxD) | mm | 945 x 970 x 370 | ||
| Net weight | kg | 73 | ||
| Refrigerant (R32) | Quantity | 2.98 | ||
| Pre charged to pipe length | m | 40 | ||
| Installation data | Refrigerant piping | Liquid line | mm | Ø6.35 x 5 |
| Gas line | Ø9.52 x 5 | |||
| Connection method | Flare connection | |||
| Maximum pipe length to one indoor unit | m | 25 | ||
| Total pipe length to all indoor units | 75 | |||
| Max vertical height diff. between O.U. and I.U. | 20 ( O.U. above I.U.) / 20 ( O.U. below I.U. ) | |||
| Indoor Unit Connection | **3 to 5 Units | |||
| Indoor Connection Capacity | kW | 9.0 to 16.0 | ||
| Outdoor air temperature (upper, lower limits) | Cooling | °C | -15 to 46 | |
| Heating | -15 to 24 | |||
| * Operation data are are conducted in accordance with AS/NZS 3823 standard. For testing conditions please refer to Page14. | ||||
| ** This model normally requires a minimum of 3 indoor units. Combination of 2 indoor units in some circumstances would be permitted. Please refer to the “Combination Limitations” table on page 10 for the detailed connection information. | ||||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
