Description

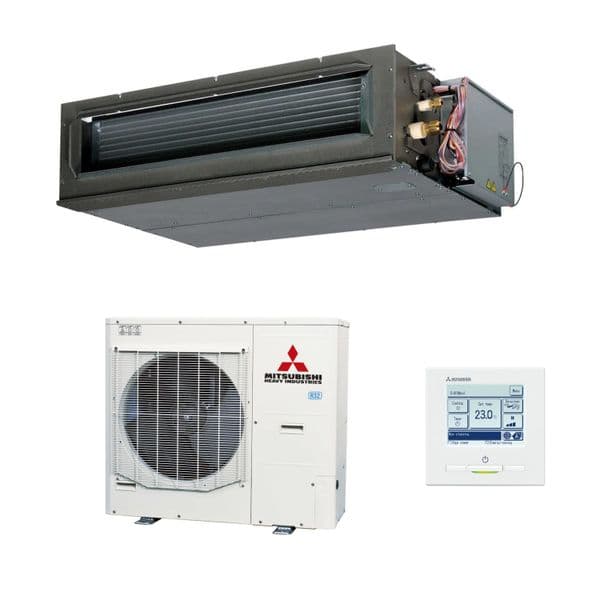

Kit Includes
1 × FDUM100VH Indoor Ceiling Concealed Ducted Unit (10.0 kW / 34,000 Btu)
1 × FDC100VSA-W Outdoor Micro Inverter Unit (R32, 3 Phase, 380–415 V, 50 Hz)
1 × RC-EX3A Eco Touch Wired Remote Controller (2-wire PAC)
1 × UM-FL1/2/3EF Return Air Filter
Key Product Features
10.0 kW nominal cooling / 12.5 kW nominal heating capacity
R32 refrigerant for low environmental impact and improved energy efficiency
DC inverter with automatic external static pressure recognition
Built-in condensate lift pump
Quiet operation: indoor sound pressure from 30 dBA
Compact indoor unit (only 280 mm height) for easy ceiling void installation
Low ambient heating and cooling ready
Optional return plenums and filter kits available
Plenum inlet/outlet size: 200 mm
Ideal for integration with smart control systems and commercial setups
FDUM Indoor Unit Specifications
Model
FDUM100VH
Dimensions (HxWxD)
280 × 1,370 × 740 mm
Net Weight
54 kg
Airflow (H/M/L) – Cooling
28 / 25 / 19 (m³/min)
Airflow (H/M/L) – Heating
28 / 25 / 19 (m³/min)
Sound Pressure (dBA)
Cooling: 38 / 36 / 30 – Heating: 38 / 36 / 30
Piping Connections
3/8″ (Liquid) – 5/8″ (Gas)
Max Piping Length
50 m
Max Height Difference
50 m (above) / 15 m (below)
