Description

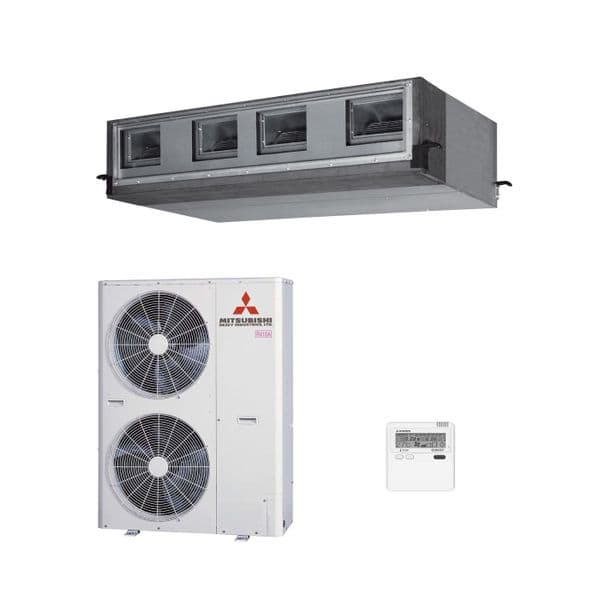

Kit Contents:
Indoor Unit: Mitsubishi Heavy Industries FDU200VH Ducted Ceiling Concealed 20kW / 68,000Btu Heat Pump
Outdoor Unit: Mitsubishi Heavy Industries WFDC200VSA-W 20kW / 68,000Btu Inverter Heat Pump (3 Phase, 415V~50Hz)
Controller: Mitsubishi Heavy Industries RC-EX3A Eco Touch Wired Remote Controller
Key Product Features:
High static pressure ducted design
7-Day Programmable Timer
Two On/Off settings per day
Custom temperature settings for each period
External timer / 8MS group switching (up to 16 units)
Wired wall controller with integral temperature sensor
Condensate lift pump included
Low ambient operation capability
Auto-restart on power recovery
Compatible with Mitsubishi multi-split systems
Technical Specification:
Indoor Unit – FDU200VH
Controller: RC-EX3A (hard wired)
Cooling Capacity (UK Total/Sensible): 19.07 kW / 14.35 kW
Cooling Range (Nominal): 7.2 – 22.4 kW
Heating Range (Nominal): 6.5 – 25 kW
EER / COP: 3.25 / 3.95
SEER / SCOP: N/A / N/A
Dimensions (H x W x D): 379 x 1600 x 893 mm
Weight: 88 kg
Airflow (H/M/L) – Cooling/Heating: 80 / 72 / 64 m³/min
Sound Pressure (H/M/L) – Cooling/Heating: 50 / 52 / 47 dB(A)
Outdoor Unit – WFDC200VSA-W
Dimensions (H x W x D): 1505 x 970 x 370 mm
Weight: 144 kg
Sound Pressure (Cooling/Heating): 58 / 59 dB(A)
Power Supply: 3 Phase, 380–415V, 50Hz
MCB Rating: 25A per phase
Start / Max Running Current: 5 A / 23 A
Interconnecting Cable: 3+E (1.5 mm²)
Refrigeration Data
Piping Size (O.D.): Liquid: 3/8″ | Suction: 7/8″
Max Piping Length: 70 m
Max Height Difference (Out-In): 50 m above / 15 m below
Pre-charged Refrigerant Amount: 4.3 kg
For Pipe Length up to: 30 m
Additional Refrigerant Charge: 20 g/m
