TECNICAL SPECIFICATION:

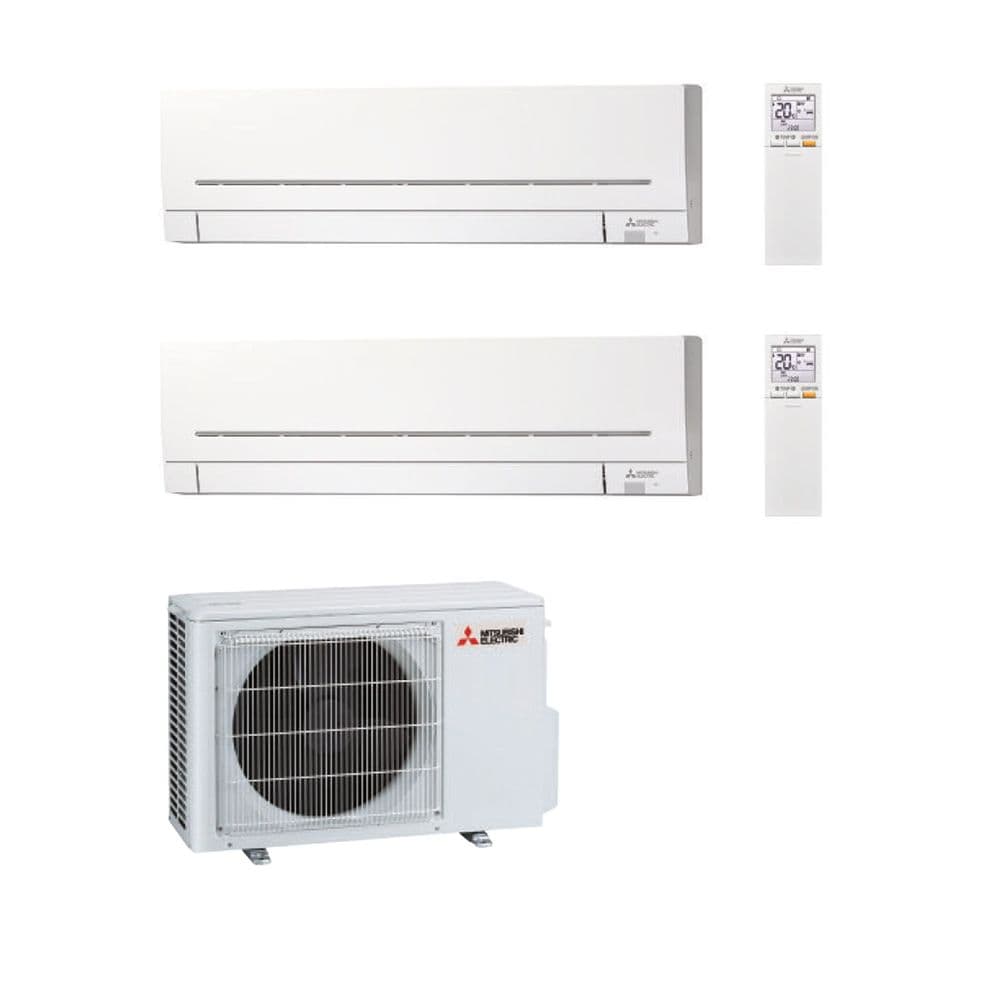

| MXZ-F – OUTDOOR UNITS | MXZ-2F33VF3 |
| NUMBER OF CONNECTABLE INDOOR UNITS | 2 |
| Capacity (kW) Heating (nominal) | 4.0 (1.0-4.1) |
| Cooling (nominal) | 3.3 (1.1-3.8) |
| Heating (UK) | 3.32 (0.83-3.40) |
| Cooling (UK) | 3.23 (1.07-3.72) |
| COp / EER (nominal)*1 | 4.40 / 3.90 |
| SCOp (ƞsh) / SEER (ƞsc) (BS EN14825) | 4.16 / 6.13 |
| Erp Energy Efficiency CLASS Heating/Cooling | A+ / A++ |
| MAX AIRFLOW (m3/min) Heating/Cooling | 33.7 / 32.9 |
| SOUND pressure LEVEL (dBA) Heating/Cooling | 50 / 49 |
| SOUND power LEVEL (dBA) Cooling | 60 |
| DIMENSIONS (mm) Width x Depth x Height | 800 x 285 x 550 |
| WEIGHT (kg) | 33 |
| ELECTRICAL SUppLy | 220-240v, 50Hz |
| phase | Single |
| power Input (kW) Heating/Cooling (nominal) | 0.909 / 0.846 |
| Heating/Cooling (UK) | 0.82 / 0.68 |
| STARTING CURRENT (A) | 4.6 |
| RUNNING CURRENT (A) Heating/Cooling [MAX] | 4.6 / 4.3 [10.0] |
| INTERCONNECTING CABLE No. CORES | 4 Core |
| TOTAL pipe LENGTH (m) | 20 |
| MAX pipe LENGTH perINDOOR UNIT (m) | 15 |
| MAX HEIGHT DIFFERENCE (m) | 10 |
| CHARGE REFRIGERANT (kg) /CO2 EQUIVALENT (t) – R32 (GWP 675) | 1.00 / 0.68 (20m) |
| FUSE RATING (BS88) – HRC (A) | 16 |
Notes: *1 System COP / EER when connected to MSZ-LN / MSZ-AP x indoor unit connections.
Combined max running current of all indoors on system must not exceed 3A.
| MSZ-AP – INDOOR UNITS | MSZ-AP15VG |
| CAPACITY (kW) Heating (nominal) | 1.7 (1.2-3.0) |
| Cooling (nominal) | 1.5 (0.9-2.7) |
| Heating (UK) | – |
| Cooling (UK) | – |
| SHF (nominal) | – |
| COP / EER (nominal) | – |
| SCOP / SEER (BS EN14825) | – |
| ErP ENERGY EFFICIENCY CLASS Heating/Cooling | – |
| AIRFLOW (l/s) Heating (SLo-Lo-Mid-Hi-SHi) | 62-73-83-100-113 |
| Cooling (SLo-Lo-Mid-Hi-SHi) | 58-65-77-92-107 |
| PIPE SIZE mm (in) Gas | 9.52 (3/8”) |
| Liquid | 6.35 (1/4”) |
| SOUND PRESSURE LEVEL (dBA) Heating (SLo-Lo-Mid-Hi-SHi) | 21-26-30-35-40 |
| Cooling (SLo-Lo-Mid-Hi-SHi) | 21-26-30-35-40 |
| SOUND POWER LEVEL (dBA) | 59 |
| DImENSIONS (mm) Width x Depth x Height | 760 x 178 x 250 |
| WEIGHT (kg) | 8.2 |
| ELECTRICAL SUPPLY | Fed by Outdoor Unit |
| FUSE RATING (BS88) – HRC (A) | 6 |
| INTERCONNECTING CABLE No. CORES | 4 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
