Multi-Room Air Conditioning System with Two Deluxe Wall-Mounted Heat Pumps – A++ Energy Efficiency

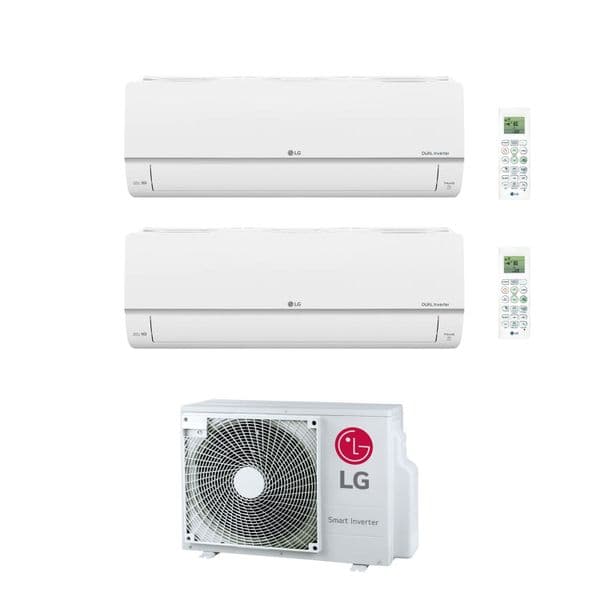

LG Air Conditioning MU4R25-U21 Multi Room 2 of DC12/18RK-NSK Deluxe Wall Mounted Heat Pump A++

£2,170.00

LG Air Conditioning MU4R25-U21 Multi Room 2 of DC12/18RK-NSK Deluxe Wall Mounted Heat Pump A++

Product Key Features:
• R32 Inverter DC compressor
• Wi-Fi as standard
• 3M Air Purifying System
• Anti Corrosion Gold Fin
• Auto Cleaning
• Auto Changeover
• Jet Cool/Jet Heat
• Natural Wind By CHAOS Swing
• Auto Restart
• Wireless Remote Controller (Luminous)
• Sleep Mode Auto Operation
• Quiet Operation
• Healthy Dehumidification
• Hot Start
• One-Touch Air Filter (Anti-Bacteria)
• 24-Hour ON/OFF Setting Timer

SKU: lg-air-conditioning-mu4r25-u21-multi-room-2-of-dc12-18rk-nsk-deluxe-wall-mounted-heat-pump-a Category: Product ID: 31820

Description

UNIT INDOOR12K
0.89 / 3.50 / 4.04
CapacityCooling/ Rated / Max. kW
HeatingMin. / Rated / Max. kW0.89 / 4.00 / 6.00
Heating -7°CRated kW3.50
Power Input Cooling / HeatingRated W933 / 976
EERW/W3.75
S.E.E.R.7.60
P design CkW3.50
COPW/W4.10
S.C.O.P(Average / Warmer)4.60 / 5.40
design H (Average / Warmer) kW2.90 / 1.50
Energy Label (A+++ to D Scale)CoolingA++
Heating(Average / Warmer)A++ / A++
A n n u a l E n e r g y ConsumptionCoolingkWh161
Heating/ Warmer) kWh883 / 389
Sound PressureCoolingS / L / M / H dB(A)19 / 27 / 37 / 42
HeatingL / M / H dB(A)27 / 37 / 42
Sound Power CoolingdB(A)60
Air Flow RateCooling/ L / M / H / Max. (Power) m3/min3.5 / 5.5 / 9.0 /11.0 /13.0
HeatingL / M / H m3/min6.5 / 9.0 / 11.0
Dehumidification Rate l/h1.3
Running CurrentCooling/ Rated / Max. A1.00 / 4.00 / 6.00
Heating/ Rated / Max. A1.00 / 4.30 / 7.00
Starting Current Cooling / HeatingRated A4.00 / 4.30
Power Supply Ø/ V/ Hz1 / 220-240 / 50
Circuit Breaker A15
Power Supply Cable N xmm23 x 1.0
Power & Transmission Cable N xmm24 x 1.0(Including Earth)
Dimension mm837 x 308 x 189
Net Weight kg9.1
Fan Motor Output W30
UNIT INDOOR18K
5.0
CapacityCooling/ Rated / Max. kW
Heating/ Rated / Max. kW5.8
Heating -7°CRated kW5
EERW/W4.37
S.E.E.R.7.90
P design CkW2.50
COPW/W4.50
S.C.O.P(Average / Warmer)4.60 / 5.40
design H (Average / Warmer) kW2.80 / 1.50
Energy Label (A+++ to D Scale)CoolingA++
Heating(Average / Warmer)A++ / A++
A n n u a l E n e r g y ConsumptionCoolingkWh111
Heating/ Warmer) kWh852 / 389
Sound PressureCoolingS / L / M / H dB(A)31 / 34 /42 / 47
HeatingL / M / H dB(A)31 / 34 / 42 / 47
Sound Power CoolingdB(A)60
Air Flow RateCooling/ L / M / H / Max. (Power) m3/min8.0 / 10.5 / 13.1 / 15.5
HeatingL / M / H m3/min8.0 / 10.5 / 13.1 / 15.5
Dehumidification Rate l/h1.9
Power Supply Ø/ V/ Hz1 / 220-240 / 50
Power Supply Cable N xmm23 x 1.0
Power & Transmission Cable N xmm24 x 1.0(Including Earth)
Dimension mm998 x 345 x 210
Net Weight kg11.9

Technical Specifications Outdoor Multi:

OUTDOOR UNIT
Compressor TypeTwin Rotary
Capacity *CoolingMin / Nom / Max kW1.3 / 7.0 / 8.5
HeatingMin / Nom / Max kW1.5 / 8.4 / 9.4
Low Temperature Capacity Heating -7°CMax kW5.9
Power Input *CoolingMin / Nom / Max kW0.4 / 1.5 / 2.6
HeatingMin / Nom / Max kW0.6 / 1.8 / 2.9
Running CurrentCoolingMin / Nom / Max A1.9 / 6.6 / 11.9
HeatingMin / Nom / Max A2.8 / 8.3 / 13.1
EER4.82
COP4.61
SEER8.20
SCOP4.20
Pdesign (@-10°C)kW7.00
Seasonal Energy Label Cooling / HeatingA++ / A+
Annual Energy Consumption Cooling / Heating299 / 2,333
Airflow Rate Nomm3/min60
Sound PressureCoolingNom dBA49
HeatingNom dBA53
Sound Power CoolingMax dBA64
Dimensions W x H x D mm950 x 834 x 330
Net WeightKg61
RefrigerantTypeR32
Charge Kg2.3
Additional Charge g/m20
GWP675 675 675
t-CO2 eq1.55 1.55 1.76
Operation Range (Outdoor)CoolingMin ~ Max °C DB-10 ~ 48
HeatingMin ~ Max °C WB-18 ~ 18
Power SupplyØ / V / Hz1 / 220-240 / 50
Power Supply CableNo. x mm23C x 2.5
Transmission CableNo. x mm24C x 0.75
Circuit BreakerA25
Piping Length Totalm70
Piping Length per BranchMax m25
Piping Elevation DifferenceIDU – ODUMax m15
IDU – IDUMax m7.5
Piping ConnectionsLiquid mm(inch) x No.Ø6.35 (1/4) x 4

These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers
