Description

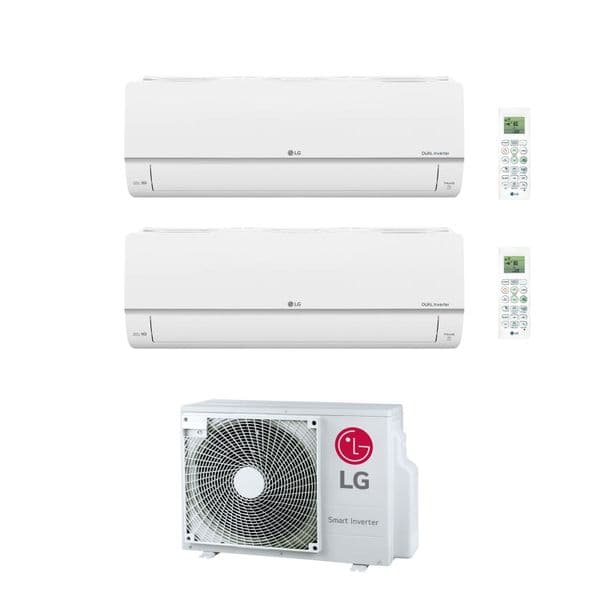

| indoor unit | S09EQ.NSJ | ||||
|---|---|---|---|---|---|
| Efficiency | Cooling | Min. | IN | 890 | |
| Nom. | IN | 2500 | |||
| Max. | IN | 3700 | |||
| Heat + 7 ° C | Min. | IN | 890 | ||
| Nom. | IN | 3200 | |||
| Max. | IN | 4100 | |||
| Heating -7 ° C | Max. | IN | 3000 | ||
| Power consumption (set) | Cooling | Nom. | IN | 730 | |
| Heat + 7 ° C | Nom. | IN | 950 | ||
| EER | W / W | 3.42 | |||
| SEER | 5.7 | ||||
| cooling load | kW | 2.5 | |||
| COP | W / W | 3.37 | |||
| SCOP | 3.8 | ||||
| heating load | kW | 2.3 | |||
| Energy efficiency class | Cooling | A++ | |||
| Heating | A+ | ||||
| Annual energy consumption | Cooling | kWh | 154 | ||
| Heating | kWh | 847 | |||
| Sound pressure level | Cooling | sleep mode | dB (A) | 19 | |
| Short | dB (A) | 25 | |||
| Average | dB (A) | 33 | |||
| Tall | dB (A) | 39 | |||
| Heating | Short | dB (A) | 28 | ||
| Average | dB (A) | 33 | |||
| Tall | dB (A) | 39 | |||
| Sound power level | Cooling | Tall | dB (A) | 58 | |
| Air flow | Cooling | sleep mode | m³ / min | 3.0 | |
| Short | m³ / min | 4.5 | |||
| Average | m³ / min | 6.0 | |||
| Tall | m³ / min | 7.5 | |||
| Max (Power) | m³ / min | 9.0 | |||
| Heating | Short | m³ / min | 5.0 | ||
| Average | m³ / min | 6.0 | |||
| Tall | m³ / min | 8.0 | |||
| Drainage | I / h | 0.83 | |||
| operating current | Cooling | Nom. | AND | 3.2 | |
| Max. | AND | 6.5 | |||
| Heating | Nom. | AND | 4.2 | ||
| Max. | AND | 6.0 | |||
| starting current | Cooling | Nom. | AND | 3.2 | |
| Heating | Nom. | AND | 4.2 | ||
| Power | Ø / V / Hz | 1 / 220-240 / 50 | |||
| overcurrent protection | AND | C-16 | |||
| The power cables (for outdoor unit) | loam. × mm² | 1.0 x 3 | |||
| The power cables and control (between individuals) | loam. × mm² | 4 x 1.0 | |||
| dimensions | mm | 756x265x184 | |||
| Net weight | kg | 7.4 | |||
| Fan motor power | IN | thirty | |||
Technical Specifications Outdoor Multi:
| OUTDOOR UNIT MU2R15 UL0 | |||
| Compressor Type | Twin Rotary | ||
| Capacity * | Cooling | Min / Nom / Max kW | 0.9 / 4.1 / 4.7 |
| Heating | Min / Nom / Max kW | 1.0 / 4.7 / 5.4 | |
| Low Temperature Capacity Heating -7°C | Max kW | 3.3 | |
| Power Input * | Cooling | Min / Nom / Max kW | 0.2 / 1.0 / 1.4 |
| Heating | Min / Nom / Max kW | 0.2 / 1.1 / 1.4 | |
| Running Current | Cooling | Min / Nom / Max A | 1.1 / 4.6 / 6.4 |
| Heating | Min / Nom / Max A | 1.1 / 4.9 / 6.6 | |
| EER | 4.14 | ||
| COP | 4.38 | ||
| SEER | 8.50 | ||
| SCOP | 4.20 | ||
| Pdesign (@-10°C) | kW | 4.10 | |
| Seasonal Energy Label Cooling / Heating | A+++ / A+ | ||
| Annual Energy Consumption Cooling / Heating | 169 / 1,367 | ||
| Airflow Rate Nom | m3/min | 28.2 | |
| Sound Pressure | Cooling | Nom dBA | 48 |
| Heating | Nom dBA | 51 | |
| Sound Power Cooling | Max dBA | 61 | |
| Dimensions W x H x D mm | 770 x 545 x 288 | ||
| Net Weight | Kg | 36 | |
| Refrigerant | Type | R32 | |
| Charge Kg | 1.1 | ||
| Additional Charge g/m | 20 | ||
| GWP | 675 | ||
| t-CO2 eq | 0.74 | ||
| Operation Range (Outdoor) | Cooling | Min ~ Max °C DB | -10 ~ 48 |
| Heating | Min ~ Max °C WB | -18 ~ 18 | |
| Power Supply | Ø / V / Hz | 1 / 220-240 / 50 | |
| Power Supply Cable | No. x mm2 | 3C x 2.5 | |
| Transmission Cable | No. x mm2 | 4C x 0.75 | |
| Circuit Breaker | A | 15 | |
| Piping Length Total | m | 30 | |
| Piping Length per Branch | Max m | 20 | |
| Piping Elevation Difference | IDU – ODU | Max m | 15 |
| IDU – IDU | Max m | 7.5 | |
| Piping Connection | Liquid mm (inch) x No. | Ø6.35 (1/4) x 2 | |
| Gas mm (inch) x No. | Ø9.52 (3/8) x 2 | ||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers
