Description
Technical Specifications:

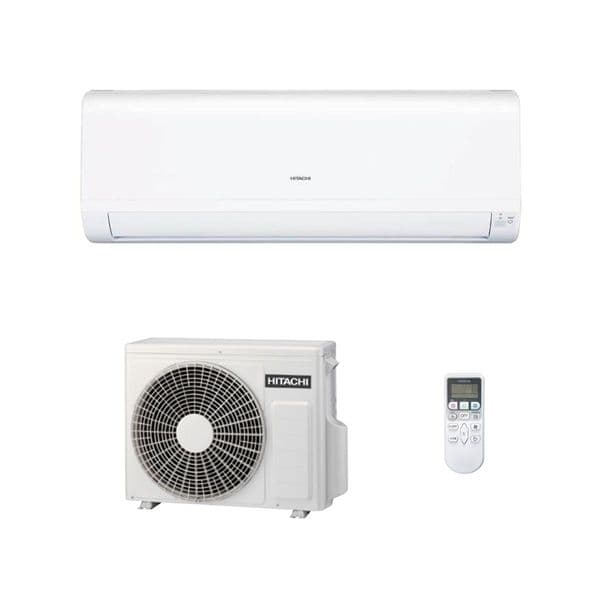

| Indoor Unit Model | rak-35ped | ||
| Nominal Cooling Capacity (min – max) | kW | 3.50 (0.90 – 4.00) | |
| Sensible Cooling Capacity | kW | 2.87 | |
| UK Cooling Capacity (sensible) | kW | 3.3 (2.5) | |
| Heating capacity at -7°C | kW | 3.00 | |
| Nominal Heating Capacity (min – max) | kW | 4.20 (0.90 – 5.00) | |
| Nominal cooling power input (min – max) | kW | 1.09 (0.25 – 1.46) | |
| Nominal heating power input (min – max) | kW | 1.10 (0.25 – 1.70) | |
| Seasonal Efficiency SEER (4)Energy Efficiency Class Annual Energy Consumption | kWh/yr | 5.85 | |
| A+ | |||
| 209 | |||
| Seasonal Efficiency SCOP (4) (Average Climate)Energy Efficiency Class Annual Energy Consumption | kWh/yr | 3.80 | |
| A | |||
| 1.124 | |||
| Nominal Load Efficiency EER / COP (5)Energy Class (Cool/Heat) | 3.21/3.82 | ||
| A/A | |||
| Noise level cooling (sound pressure) (SL / L / M / H) | (2) | dB(A) | 25/26/36/43 |
| Noise level heating (sound pressure) (SL / L / M / H) | (2) | dB(A) | 26/27/36/44 |
| Noise level (sound power) (1) | dB(A) | 57 | |
| Air flow cooling mode (SL / L / M / H) | m3/h | 333/400/485/600 | |
| Air flow heating mode (SL / L / M / H) | m 3/h | 333/520/550/660 | |
| Dehumidification | l/h | 1.6 | |
| Dimensions (H x W x D) | mm | 280x780x218 | |
| Weight | kg | 7.5 | |
| Power supply | From Outdoor Unit | ||
| Drain diameter (ext) | φ16mm | ||
| Remote Control | Std | Infra Red (RAR-5F1) | |
| Opt. 1 | Wired (SPX-RCDB) | ||
| Opt. 2 | Wired (SPX-WKT2) | ||
| Outdoor Unit Model | rac-35wed | ||
| Noise level cooling (sound pressure) (night mode) | (3) | dB(A) | 48 |
| Noise level heating (sound pressure) (night mode) | (3) | dB(A) | 49 |
| Noise level (sound power) (1) | dB(A) | 62 | |
| Air flow (Cooling / Heating) | m3/h | 1860/1620 | |
| Dimensions (H x W x D) | mm | 530x660x278 | |
| Weight | kg | 27.5 | |
| Piping diameter (Liquid / Gas) | Inch | 1/4 – 3/8 | |
| mm | 6.35 – 9.52 | ||
| Minimum Piping Length | m | 3.0 | |
| Maximum Piping h/l difference | m | 20/10 | |
| Current Quantity of Refrigerant | kg | 0.95 | |
| Chargeless / Additional Refrigerant Charge | m / g/m | 20/ – | |
| Power supply | 230V/1Ph/50Hz | ||
| Recommended fuse size | A | 16 | |
| Starting current (cooling/heating) | A | <1 Amp | |
| Running current (cooling/heating) | A | 1.09-6.35/1.09-7.39 | |
| Interconnecting Cables | No. | 3 + E | |
| Working Range (cooling/heating) | °C | -10°C~+43°C / -15°C~+21°C | |
| Refrigerant / GWP | R32 / 1975 | ||
| Compressor type | Rotary | ||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
