Description
Technical Specifications:

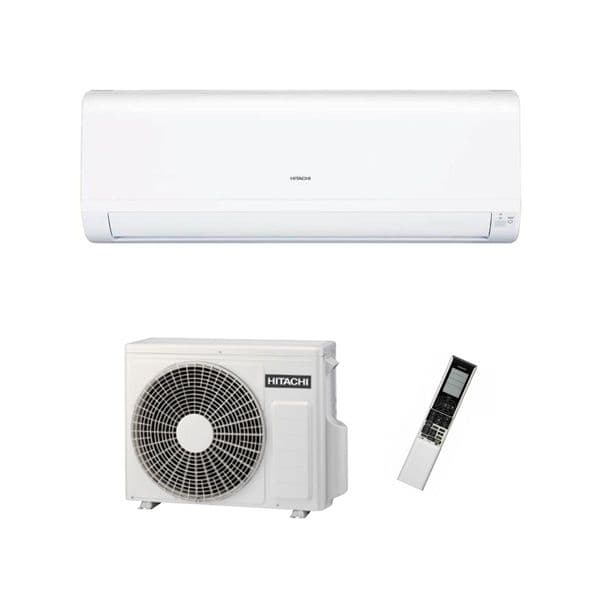

| INDOOR R32 | Unit | RAK-35RPD |
| Nominal capacity adjustable | no | |
| Nominal Cooling capacity (min – max) | kW | 3.50 (0.90- 4.00) |
| Cooling sensible capacity | kW | 2.42 |
| Nominal Heating capacity (min – max) | kW | 4.20 (0.90- 5.00) |
| Noise level cooling (sound pressure) (SL / L / M / H) | dB(A) | 25/26/36/43 |
| Noise level heating (sound pressure) (SL / L / M / H) | dB(A) | 26/27/36/44 |
| Noise level (sound power) | dB(A) | 57 |
| Air flow cooling mode (SL / L / M / H) | m3/h | 353 / 420 / 485 / 680 |
| Air flow heating mode (SL / L / M / H) | m3/h | 363 / 480 / 570/ 780 |
| Fan Motor | W | 30 |
| Dehumidification | l/h | 1.6 |
| Dimensions (H x W x D) | mm | 280 x 780 x 230 |
| Weight | kg | 8.5 |
| Colour | Star White (N9.3) | |
| Condensate Drain | mm | φ 16 |
| Running current (C/H) | A | 1.09-6.35/1.09-7.39 |
| Power supply | 220-230V | |
| Cable section (interconnection） | mm² | 1.50x 3+EARTH/- |
| Piping diameter (Liq / Gas) | Inch | 1/4″ / 3/8″ |
| Drain diameter (ext) | mm | φ 16 |
| Remote control (standard/optional) | RAR-6N1/SPX-RCDB | |
| Filter | ||
| ACL Filter | activated carbon | |
| ACL part name | SPX-CFH25 | |
| Pre-filter(Standard/Optional ) | WASHABLE/Stainless-SPX-SPF8 |
| OUTDOOR R32 | RAC-35WPD | ||
| Nominal Cooling capacity (min – max) | kW | 3.50 (0.90- 4.00) | |
| Nominal Heating capacity (min – max) | kW | 4.20 (0.90- 5.00) | |
| Nominal cooling power input (min – max) | kW | 0.941(0.25 – 1.46) | |
| Nominal heating power input (min – max) | kW | 1.000(0.25 – 1.70) | |
| EER / COP | 3.72/4.2 | ||
| SEER / SCOP | 7.80/4.90 | ||
| Energy class (SEER/SCOP) | A++/A++ | ||
| Noise level cooling (sound pressure) | dB(A) | 48 | |
| Noise level heating (sound pressure) | dB(A) | 49 | |
| Noise level (sound power) | dB(A) | 61 | |
| Air flow (Cooling / Heating) | m3/h | 1920 / 1620 | |
| Dimensions (H x W x D) | mm | 548× 750× 288 | |
| Weight | kg | 32.5 | |
| Colour (Munsell Code) | Beige (5Y7/2) | ||
| Power supply | V/Ph/Hz | 230V / 1Ph / 50Hz | |
| Recommended fuse size | A | 15 | |
| Starting current(C/H) | A | 4.81/5.11 | |
| Running current (C/H) | A | 1.09-6.35/1.09-7.39 | |
| Cable section (power) | mm² | 1.50x 2+EARTH | |
| Cable section (Interconnection) | mm² | 1.50x 3+EARTH | |
| Piping diameter (Liq / Gas) | Inch | 1/4″ / 3/8″ | |
| Minimum piping length | m | 3 | |
| Maximum piping length / height difference | m | 20 / 10 | |
| Current quantity of refrigerant / Chargeless | kg | 0.870 | |
| Chargeless length / Additional refrigerantcharge | m / g/m | 20/- | |
| Working range (cooling / heating) | ° C | -10℃~43℃/-15~21℃ | |
| Refrigerant | R32 | ||
| Condenser Fan | Propeller Fan | ||
| Compressor | Type | ROTARY | |
| Oil Charge | mL | 320±20 | |
| Oil Type | ACS-68R or equivalent | ||
| Coil resistance | Ω | 2.167 at 20℃ | |
| Quantity | 1 | ||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
