Description

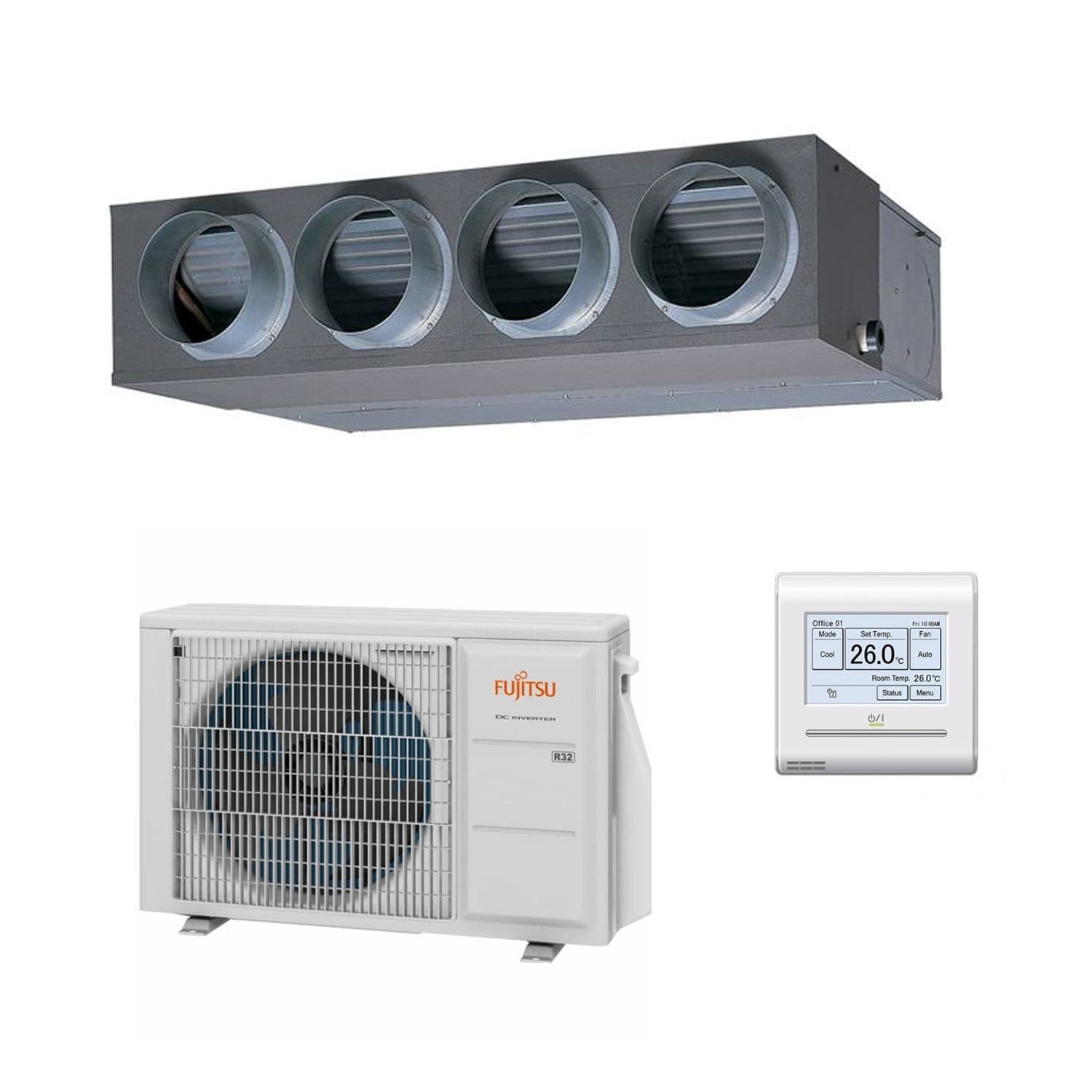

Perfect for areas where you want concealed air conditioning, the ARXG-KMLA medium static pressure ducted units are mounted above a ceiling and designed for small homes, offices, restaurants or shops. The ARXG-KMLA medium static pressure ducted unit operates at low noise levels and is virtually invisible when installed within a suspended ceiling. Its low unit height and lightweight design makes the installation easier and more convenient. It’s whisper quiet operation is ideal for master bedrooms, living rooms and other single room residential or quiet commercial uses. It can be installed in a bulkhead design format with direct outlet grille for total integration with the room.
Specification:
| Models: | Outdoor: AOYG22KATA Indoor: ARXG22KMLA | |||||||
| Power Source | Single phase, ~230V, 50Hz | |||||||
| Capacity | Cooling | kW | 6.0(0.9-6.3) | 6.8(0.9-7.4) | 8.5(2.8-9.6) | 9.5(2.8-10.6) | 12.1(4.0-12.6) | |
| Heating | 7.0(0.9-7.4) | 7.5(0.9-8.6) | 10.0(2.7-10.8) | 10.8(2.7-12.5) | 13.5(4.2-15.0) | |||
| UK Total/sensible cooling | kW | 5.65 / 4.23 | 6.63 / 4.86 | 8.08 / 6.23 | 9.03 / 6.83 | 11.54 / 8.64 | ||
| Input Power | Cooling/Heating | kW | 1.92/2.00 | 2.19/2.00 | 2.78/2.77 | 3.13/3.03 | 4.84/4.18 | |
| EER | Cooling | W/W | 3.13 | 3.11 | 3.06 | 3.04 | 2.50 | |
| COP | Heating | 3.50 | 3.75 | 3.61 | 3.56 | 3.23 | ||
| Pdesign | Cooling/Heating(-10°C) | kW | 6.0/4.4 | 6.8/5.4 | 8.5/8.0 | 9.5/8.7 | – | |
| SEER | Cooling | W/W | 5.8 | 5.9 | 5.8 | 5.6 | – | |
| SCOP | Heating | 3.8 | 3.9 | 3.9 | 3.9 | – | ||
| Energy EfficiencyClass | Cooling | A+ | A+ | A+ | A+ | – | ||
| Heating | A | A | A | A | – | |||
| Annual Energy Consumption | Cooling | kWh/a | 362 | 403 | 513 | 594 | – | |
| Heating | 1,620 | 1,935 | 2,871 | 3,122 | – | |||
| Moisture Removal | I/h | 2.1 | 2.5 | 2.5 | 3.0 | 4.0 | ||
| Sound Pressure Level | Indoor (Cooling) | H/M/L/Q | dB(A) | 31/29/27/25 | 31/29/27/25 | 39/35/30/26 | 39/35/30/26 | 42/38/32/28 |
| Indoor (Heating) | H/M/L/Q | 31/29/27/25 | 31/29/27/25 | 42/35/30/26 | 42/35/30/26 | 42/38/32/28 | ||
| Outdoor(Cooling/Heating) | High | 52/53 | 54/55 | 53/55 | 55/55 | 58/59 | ||
| Sound Power Level | Indoor(Cooling/Heating) | High | 60/62 | 60/62 | 65/69 | 65/70 | 68/70 | |
| Outdoor(Cooling/Heating) | High | 64/65 | 66/67 | 68/69 | 70/70 | 72/73 | ||
| Airflow Rate | Indoor / Outdoor (Cooling) | High | m3/h | 1,100/2,240 | 1,100/2,885 | 1,900/3,750 | 1,900/3,750 | 2,100/4,450 |
| Indoor / Outdoor (Heating) | High | 1,100/2,240 | 1,100/2,350 | 2,100/3,750 | 2,100/3,750 | 2,100/4,450 | ||
| Static pressure range (Standard) | Pa | 30 – 150 (35) | 30 – 150 (35) | 30 – 150 (47) | 30 – 150 (47) | 30 – 150 (60) | ||
| Net Dimensions H x W x D | Indoor | mm | 270×1,135×700 | 270×1,135×700 | 270×1,135×700 | 270×1,135×700 | 270×1,135×700 | |
| Outdoor | mm | 632×799×290 | 632×799×290 | 788×940×320 | 788×940×320 | 998×940×320 | ||
| Weight | Indoor | kg(lbs) | 35(77) | 35(77) | 38(84) | 38(84) | 39(86) | |
| Outdoor | kg(lbs) | 36(79) | 38(84) | 52(115) | 52(115) | 61(134) | ||
| Interconnecting Cable (Suggested cable size 1.5mm) | 3 Core + Earth | |||||||
| Suggested MCB Size | Amp | 16 | 20 | 25 | 25 | 32 | ||
| Max. Operating Current | Cooling/Heating | A | 11.6/11.6 | 12.6/12.6 | 22.5/22.5 | 22.5/22.5 | 28.1/28.1 | |
| Power Supply To | Outdoor | |||||||
| Connection Pipe Diameter (Gas / Liquid) | Inch | 1/2 & 1/4 | 1/2 & 1/4 | 5/8 & 3/8 | 5/8 & 3/8 | 5/8 & 3/8 | ||
| Max Pipe Length (Pre-Charge) | m | 25 (15) | 25(20) | 30(30) | 30(30) | 30(30) | ||
| Max Height Difference | 20 | 20 | 30 | 30 | 30 | |||
| Refrigerant | Type | R32 | R32 | R32 | R32 | R32 | ||
| Charge | g | 1100 | 1250 | 1900 | 1900 | 2400 | ||
| Additional Charge | g/m | 20 | 20 | – | – | – | ||
| Operation Range | Cooling | °CDB | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 | -10 to 46 | |
| Heating | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | -15 to 24 | |||
| Optional Parts: | |||||
| Compact Wired Remote Controller: | UTY-RCRYZ1 | KNX® Converter: | UTY-VKSX | Wireless LAN Interface: | UTY-TFSXZ1 |
| Wired Remote Controller (Touch Panel): | UTY-RNRYZ3 | MODBUS® Converter: | UTY-VMSX | IR Receiver Unit: | UTY-LBTYM |
| Wired Remote Controller: | UTY-RVNYM | External input and output PCB: | UTY-XCSX | Network Converter for single split (DC power supply type): | UTY-VTGX |
| Simple Remote Controller (Without operation mode): | UTY-RHRY | External Connect Kit: | UTY-XWZXZG | Network Converter for single split (AC power supply type): | UTY-VTGXV |
| Simple Remote Controller: | UTY-RSRY | External input and output PCB: | UTZ-GXNA | Wireless interface for use with Smart home products: | FJ-AC-WIFI-1 |
| External Switch Controller: | UTY-TERX | Long-Life Filter: | UTD-LFNA (36-54) | ||
| Remote Sensor Unit: | UTY-XSZX | UTD-LFNB (18-30) | (Outdoor unit 30/36/45/54) | ||
| UTD-LFNC (12-14) | External Connect Kit: | UTY-XWZXZ3 | |||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
