Description
TECNICAL SPECIFICATION

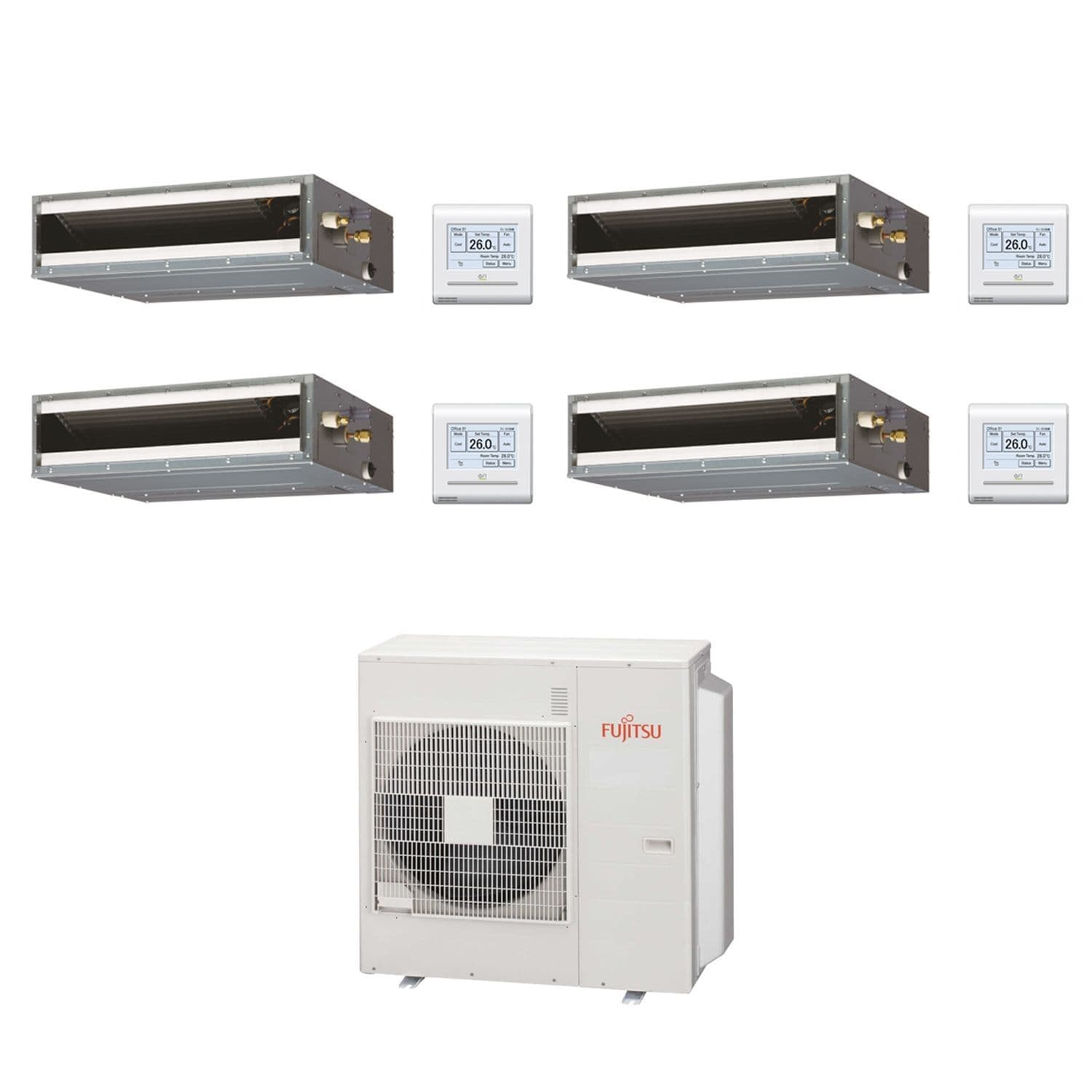

Outdoor Unit:
| Model No. Indoor unit | ARXG07KSLAP | |||
| kW Class | kW | 2.0 | ||
| Power Source | Single phase, ~230V, 50Hz | |||
| Sound Pressure Level | Cooling | H/M/L/Q | dB(A) | 28/26/25/24 |
| Heating | 28/26/25/24 | |||
| Sound Power Level | Cooling | H | dB(A) | 57 |
| Heating | 57 | |||
| Air Flow | Cooling | H/M/L/Q | m3/h | 550/490/470/440 |
| Heating | 550/490/470/440 | |||
| Net Dimensions | mm | 198x700x620 | ||
| Weight | kg(lbs) | 16 (35) | ||
| Connection Pipe Diameter | Liquid/Gas | mm | 6.35/9.52 | |
| External static pressure | Pa | 0 to 90 | ||
| Drain pump | Standard | |||
Outdoor Unit:
AOYG30KBTA4
| Power source | Phase | Single-phase |
|---|---|---|
| Voltage | ~ 230 V | |
| Frequency | 50 Hz | |
| Capacity | Cooling | 8.0 (2.4-10.1) |
| Heating | 9.6 (3.0-11.2) | |
| EER | Cooling | 3.90 / |
| COP | Heating | 4.55 |
| Sound Pressure Level (High) | Cooling | 50 dB(A) |
| Heating | 51 dB(A) | |
| Sound Power Level (High) | Cooling | 68 dB(A) |
| Heating | 70 dB(A) | |
| Net Dimensions | Height | 830 mm |
| Width | 900 mm | |
| Depth | 330 mm | |
| Net Weight | 68 kg | |
| 150 lbs | ||
| Connection Pipe Diameter | Liquid | Φ6.35×4 mm *(Φ6.53×3, Φ9.57) mm |
| Gas | Φ9.52×2, Φ12.7×2 mm *(Φ9.52×3,Φ12.7) mm *(Φ9.52×2,Φ12.7,Φ15.88) mm | |
| Max Pipe Length | Total | 70 m |
| Each | 25 m | |
| Max Height Difference | Between Outdoor Unit and Each Indoor Units. | 15 m |
| Between Indoor Units. | 10 m | |
| Operation Range | Cooling | 0 to 46 °CDB |
| Heating | -10 to 24 °CDB | |
| Refrigerant | Type | R32 |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
