Description
Specification:

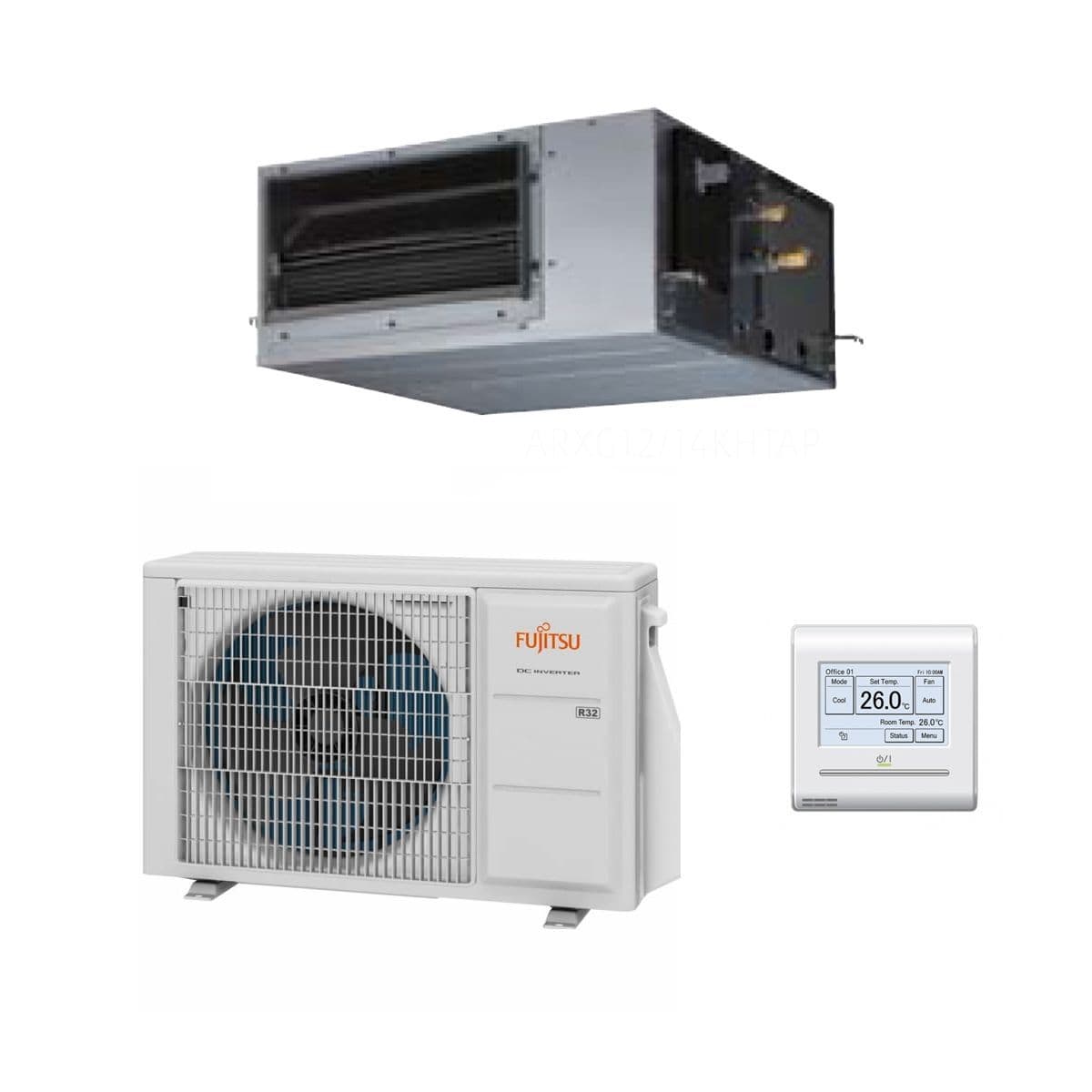

| Indoor Unit | ARXH12KMTAP |
| Outdoor Unit | AOEG12KBTB |
| Cooling Capacity (Rated) | 3.5 |
| Cooling Capacity (Min.-Max.) | 0.9-4.4 |
| Heating Capacity (Rated) | 4.1 |
| Heating Capacity (Min.-Max.) | 0.9-5.7 |
| Input Power (Cooling/Heating) | 0.930/1.080 |
| EER (Cooling) | 3.76 |
| COP (Heating) | 3.8 |
| Pdesign (Cooling/Heating) | 3.5/3.4 |
| SEER (Cooling) | 6.5 |
| SCOP (Heating – Average) | 4.2 |
| Energy Efficiency Class (Cooling) | A++ |
| Energy Efficiency Class (Heating – Average) | A+ |
| Max. Operating Current (Cooling/Heating) | 9.7/9.7 |
| Annual Energy Consumption (Cooling) | 196 |
| Annual Energy Consumption (Heating) | 1,133 |
| Moisture Removal | 1.3 |
| Sound Pressure Level (Indoor Cooling – H/M/L/Q) | 29/27/25/23 |
| Sound Pressure Level (Indoor Heating – H/M/L/Q) | 29/27/25/23 |
| Sound Power Level (Indoor Cooling/Heating – High) | 58/57 |
| Sound Power Level (Outdoor Cooling/Heating – High) | 61/61 |
| Airflow Rate (Indoor/Outdoor Cooling – High) | 650/1,580 |
| Airflow Rate (Indoor/Outdoor Heating – High) | 650/1,520 |
| Static Pressure Range (Standard) | 30 to 150 (40) |
| Net Dimensions (Indoor – H x W x D) | 240 x 700 x 700 |
| Net Dimensions (Outdoor – H x W x D) | 542 x 799 x 290 |
| Weight (Indoor) | 33 |
| Weight (Outdoor) | 33 |
| Connection Pipe Diameter (Liquid/Gas) | 6.35/9.52 |
| Drain Hose Diameter (I.D./O.D.) | 25/32 |
| Max. Pipe Length (Pre-Charge) | 25 (15) |
| Max. Height Difference | 20 |
| Operating Range (Cooling) | -15 to 46 |
| Operating Range (Heating) | -15 to 24 |
| Refrigerant Type (Global Warming Potential) | R32 (675) |
| Refrigerant Charge | 0.85 (0.574) |
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
