Daikin VAM800J8 – VENT&lt HRV

Name: Daikin VAM800J8 - VENT&amp;lt HRV
SKU: 31877
Availability: InStock

Original price was: £2,122.00.Current price is: £1,981.00. ex. VAT

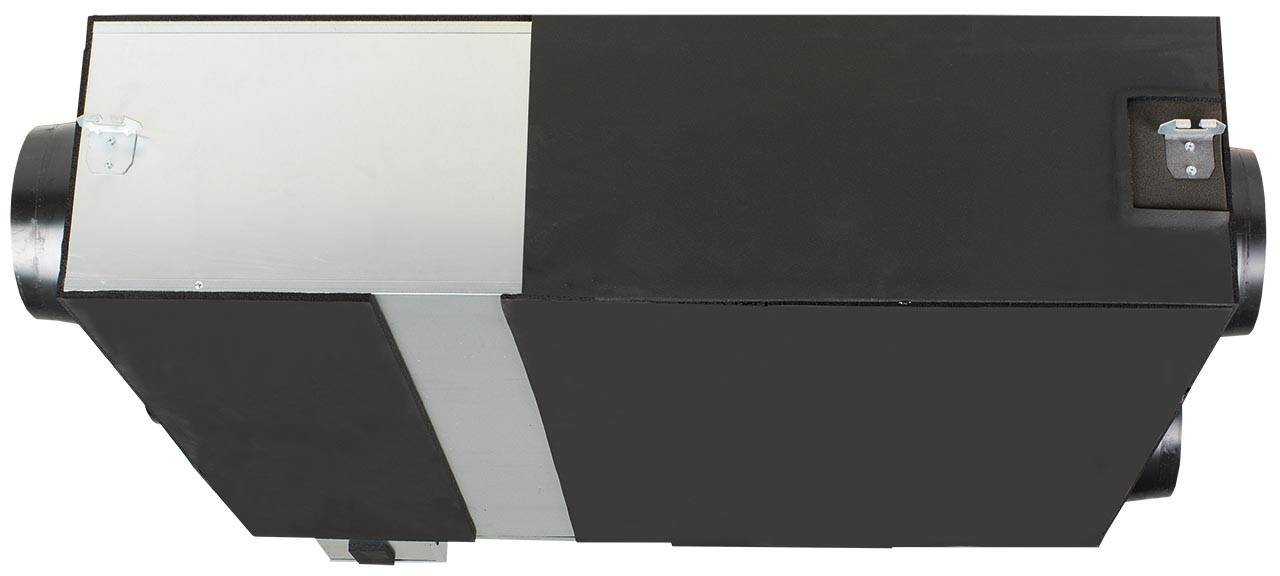

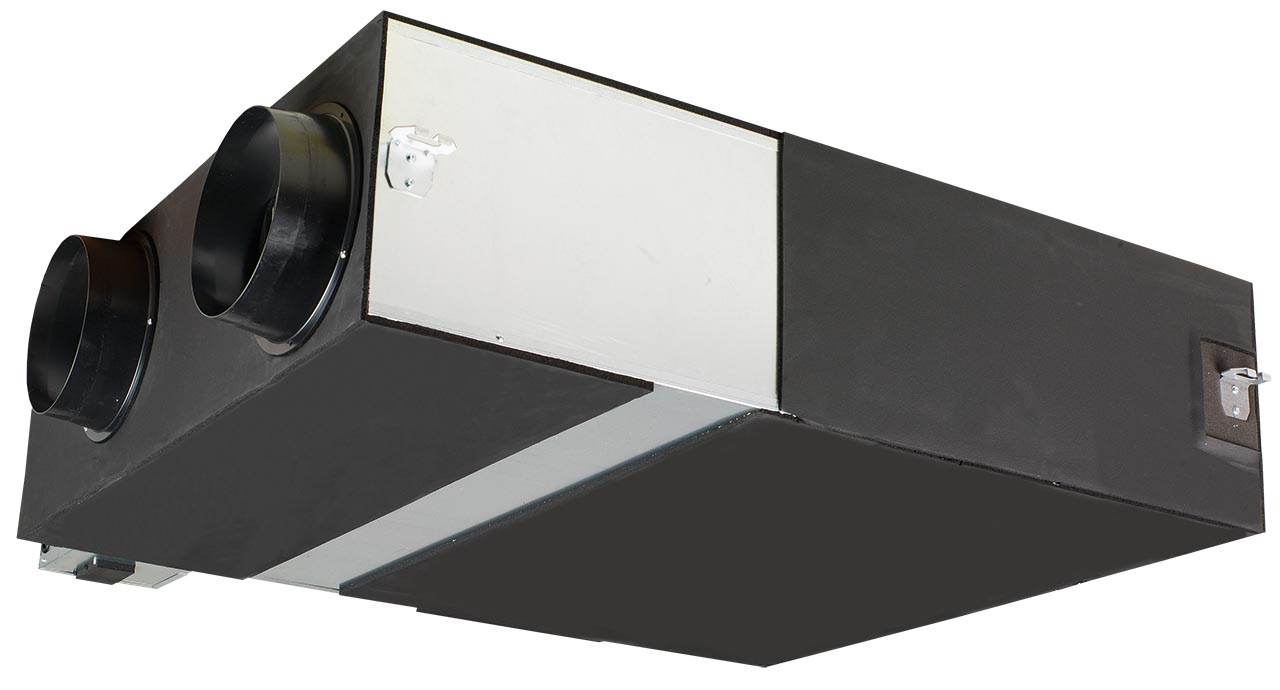

Daikin VAM800J8 – Heat Reclaim Ventilation Unit
Ventilation with Total Heat Recovery | 800 m³/h Airflow | Compact, Smart, Efficient

The Daikin VAM800J8 is a high-capacity, energy-efficient ventilation unit equipped with total heat recovery, ideal for medium-to-large commercial spaces. Designed for flexibility, the system supports both standalone and integrated operation with Sky Air or VRV systems, offering reduced energy costs and advanced indoor air quality control.

Category: Daikin Tags: (MVHR), New, Sale, Smart Product ID: 31877

Description
Reviews (0)

Description

Technical Specifications
Category
Specification
Airflow Rate
800 m³/h (Bypass & Heat Exchange – Ultra High)
External Static Pressure
90 Pa (Ultra High)
Operating Modes
Heat exchange, bypass, fresh-up
Heat Exchange System
Total (sensible + latent) air-to-air cross-flow
Heat Exchanger Material
Specially processed non-flammable paper
Temperature Range
-10°C to 46°C (dry bulb), RH ≤ 80%
Power Input (Nominal)
0.289 kW (Bypass), 0.303 kW (Heat Exchange)
Sound Power Level (Lwa)
58 dB
Sound Pressure Level
40 dBA (Bypass), 39 dBA (Heat Exchange)
Connection Duct Diameter
250 mm
Unit Dimensions (WxHxD)
1354 × 368 × 1172 mm
Casing Material
Galvanised steel plate
Weight
76.5 kg
Power Supply
1~, 220–240 V, 50/60 Hz
