Description

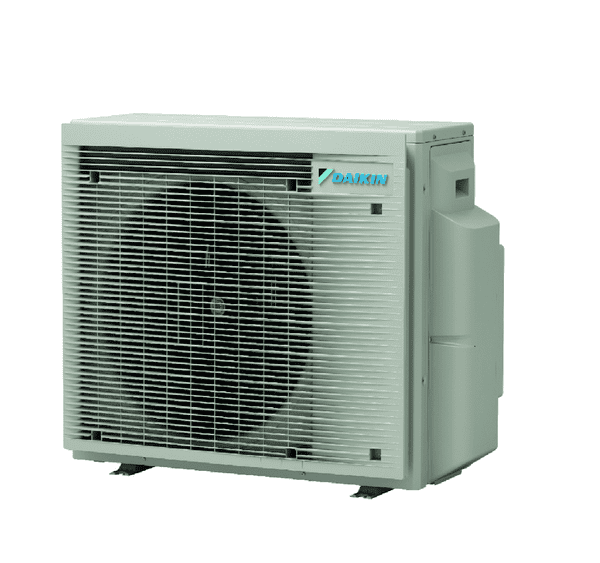

OUTDOOR UNIT:t
- Different types of indoor units can be connected: e.g. wall mounted, ceiling mounted cassette corner, concealed ceiling unit
- Outdoor units are fitted with a swing compressor, renowned for its low noise and high energy efficiency
- Up to 2 indoor units can be connected to 1 multi outdoor unit; all indoor units are individually controllable and do not need to be installed in the same room or at the same time. They operate simultaneously within the same heating or cooling mode.
- Choosing for an R-32 product, reduces the environmental impact with 68% compared to R-410A and leads directly to lower energy consumption thanks to its high energy efficiency
- Seasonal efficiency values up to A+++ in cooling and A++ in heating thanks to its up-to-date technology and built-in intelligence
- New design outlook for outdoor unit
| Compressor | Type | Hermetically sealed swing compressor | ||||
| Dimensions | Unit | Depth | 350 | mm | ||
| Height | 552 | mm | ||||
| Width | 852 | mm | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB | |
| Max. | 46 | °CDB | ||||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 20m) | kg/m | |||
| Level difference | IU | OU | Max. | 15 | m | |
| IU | Max. | 7.5 | m | |||
| Total piping length | System | Actual | 30 | m | ||
| Power supply | Frequency | 50 | Hz | |||
| Phase | 1~ | |||||
| Voltage | 220-240 | V | ||||
| Refrigerant | Charge | 1.15 | kg | |||
| GWP | 675 | |||||
| Type | R-32 | |||||
| Sound pressure level | Cooling | Nom. | 48 | dBA | ||
| Heating | Nom. | 50 | dBA | |||
| Weight | Unit | 41 | kg | |||
These air conditioning units must be installed by an F-Gas qualified engineer. ( We will ask to view this certificate before the shipment) We can install the unit for you using our F-Gas Certified Engineers.
