Description

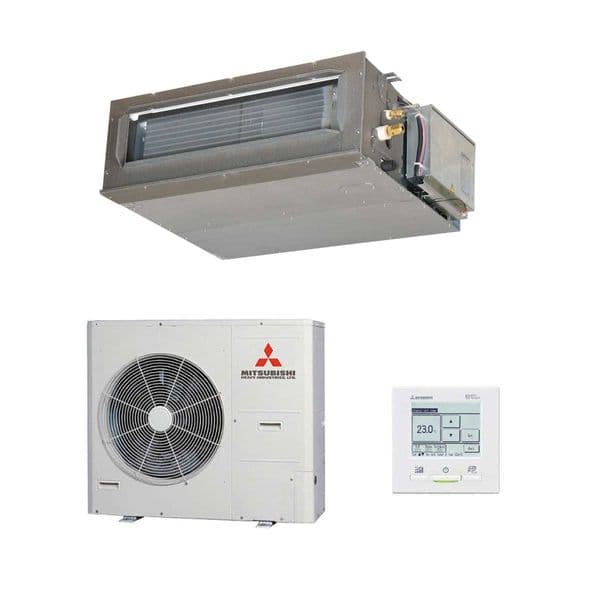

Kit Includes:

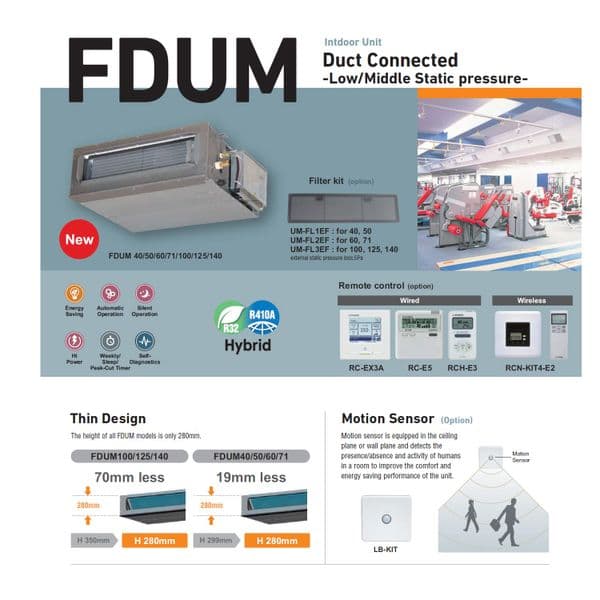

1 x FDUM140VH Indoor Unit – 14kW Ducted Ceiling Concealed A+ (R32)
1 x FDC140VSX-W Outdoor Unit – Hyper Inverter 3 Phase, 380-415V, 50Hz
1 x RC-EX3A Eco Touch Wired Remote Controller (2-wire PAC)
1 x UM-FL3EF Return Air Filter
Key Features:
14kW / 48000Btu cooling capacity
Hyper Inverter technology for improved efficiency
Automatic external static pressure recognition
Built-in condensate lift pump
Low ambient operation
Programmable 7-day timer
Compatible with Mr Slim & City Multi systems
Duct outlets/inlets: 200mm
Controls & Compatibility:
Eco Touch Controller RC-EX3A (included)
External timer & group control (up to 16 units)
Integral temperature sensor
Auto re-start after power failure
Optional Wi-Fi, KNX, and Modbus interfaces available
Technical Specifications:
Indoor Unit: FDUM140VH (280 x 1370 x 740 mm, 54 kg)
Outdoor Unit: FDC140VSX-W (1300 x 970 x 370 mm, 99 kg)
Cooling Range: 5.0 – 16.0 kW
Heating Range: 2.7 – 20.0 kW
SEER/EER: 5.79 / 3.32
SCOP/COP: 3.88 / 3.79
Airflow (H/M/L): 35 / 28 / 22 (m3/min)
Sound Pressure (Cooling/Heating): 40 / 35 / 30 dB(A)
Pipe Connections: Liquid 3/8″ – Gas 5/8″
Pre-charged for 30m piping (4kg R32 / 2.7 TCO2Eq)
Max piping length: 100m | Max height difference: 50m
Electrical:
Power Supply: 3 Phase, 380-415V, 50Hz
Max Running Current: 17A
MCB Rating: 20A per phase
Interconnecting Cable: 3+E (1.5mm)
Optional Accessories:
RCN-KIT4-E: IR Remote & Receiver Kit
RCE5 / RCH-E3: Wired/Simplified Controllers
Modbus (INMBSM), KNX (INKNXM), Wi-Fi (IHWFIM) Interfaces
Plenum kits (Return/Discharge) with 2–4 x 200mm spigots
Filter Kits: UM-FL3EF, PS/03–05, NFP10/04–09
Applications:
Ideal for commercial offices, shops, and open plan areas
Perfect for multi-zone concealed installations
Compatible with BMS and remote monitoring solutions
Note: Ensure adequate ceiling void and duct space is available. Always confirm piping distances and refrigerant adjustments during installation.
