Mitsubishi ECODAN 6kW R32 1Ph Mono ASHP UQ & 170L Pre-Plumbed Std Cylinder Pkg

£6,235.00

Mitsubishi Electric Ecodan  PUZ-WM60VAA heat pump and hot water tank includes the following items

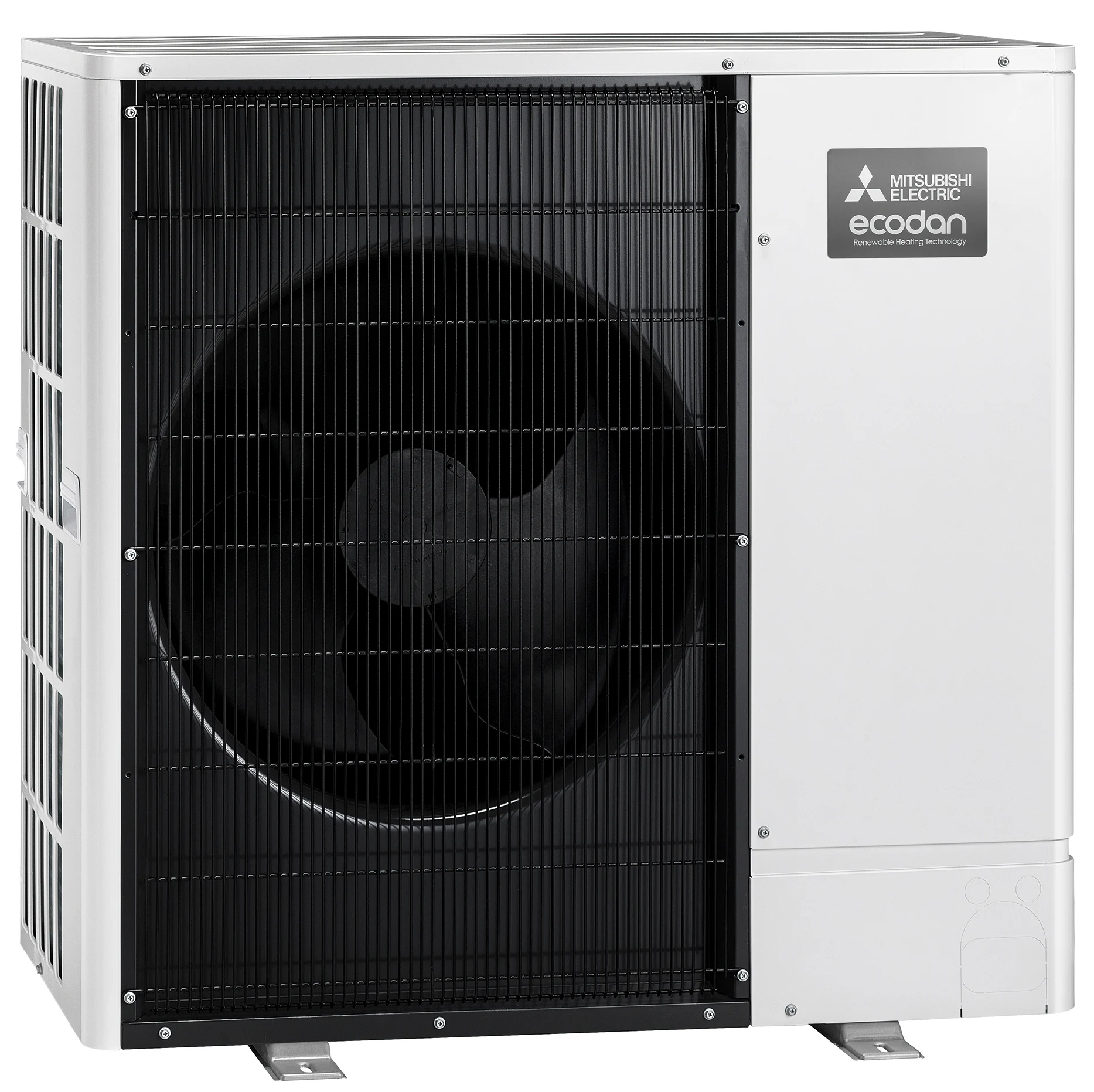

Ecodan PUZ-WM60VAA heat pump
Pre plumbed standard cylinder either 150 litres, 170 litres or 210 litres
3kw immersion heater and expansion vessel

FTC6 controller
Temperature sensors
DHW cylinder sensor
Magnetic and cyclonic filter
Connection pipes
Homeowner DVD

Category: Tags: , , , Product ID: 30407

Description

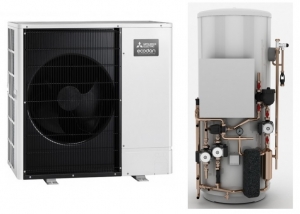

Mitsubishi Electric Ecodan PUZ-WM60VAA heat pump with standard pre-plumbed hot water cylinder of either 150 litres, 170 litres or 210 litres size. There are other cylinders that are also available for this Ecodan model, please contact us for details. This is a monoblock air to water heat pump with the water heat exchanger built into the outdoor unit, so you effectively have just the hot water outlet and return directly from the outdoor unit. The unit includes the latest FTC6 controller and the items listed in the highlights section. See information below regards the Ecodan heat pump and pre-plumbed tank.

Technical Features

  • Dimensions HxWxD (mm): 943 x 950 x 330*2
  • Sound Pressure Level at 1m: 47 dBA
  • ErP: A+++ (35ºC)
  • Breaker: 230VAC, 16A
  • Recommended pipe size: 22mm
  • Nominal flow rate: 14L/min

Key Features

  • Self-contained unit, only requiring water & electric connections
  • No need for gas supply, flues or ventilation
  • Low maintenance and quiet operation
  • Operates with outside temperatures as low as -20ºC
  • Maintains rated heating capacity down to -10ºC
  • Simple grid connection as classified as Connect & Notify*1
  • Hybrid function, for use with conventional boilers
  • MELCloud Wi-Fi connectivity and energy monitoring as standard
  • Multiple unit cascade function
  • Optimised low ambient defrost control and operation
